Glass Skylights
with high architectural appeal
Glass Skylights for all applications
Skylights with attractive designs and high architectural appeal

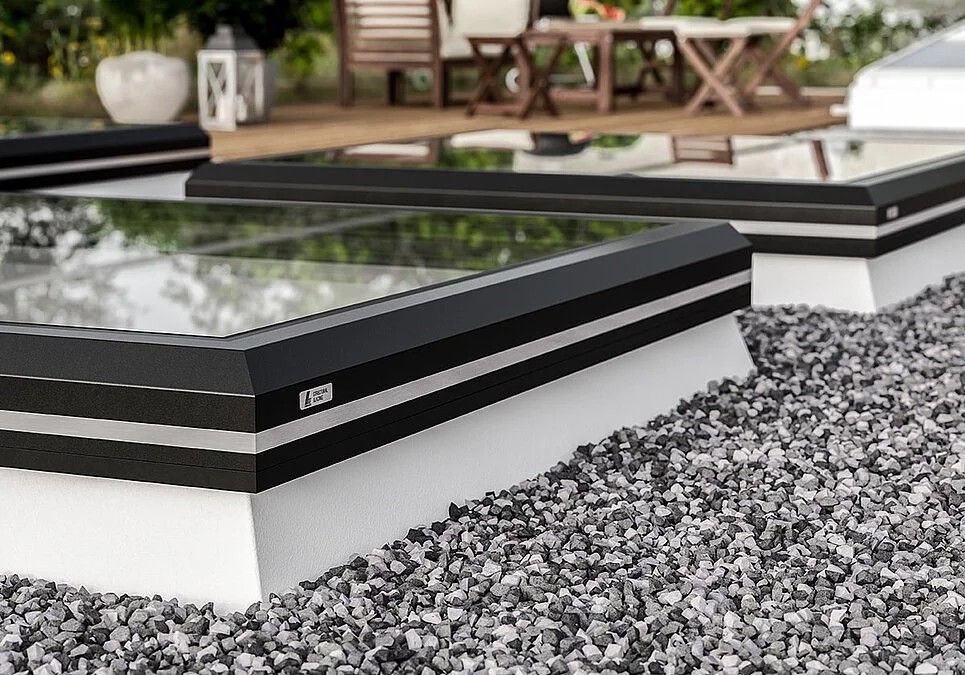

Glass Skylights are real all-rounders. Installed on the flat roof, they offer an optimal incidence of light into the building. That way, the room is flooded with up to three times more daylight compared to the usage of façade windows. We adapt the Glass Skylights to your individual requirements and search for the ideal solution for your construction project. The residential building, the office complex, the school or university should not only integrate as much natural light as possible into everyday life, but should also be energy efficient. Glass Skylights are the optimal solution for this. Whether plastic frames or aluminium frames – you can choose between numerous glazing versions. A welcome side effect: Glazing with genuine glass offers high acoustic insulation. Furthermore, our Glass Skylights are real eye-catchers. We do not only produce different sizes but also shapes: From square to circular to pyramid.
Select your suitable frame type:
Glass Skylights with plastic frame or aluminium frame?

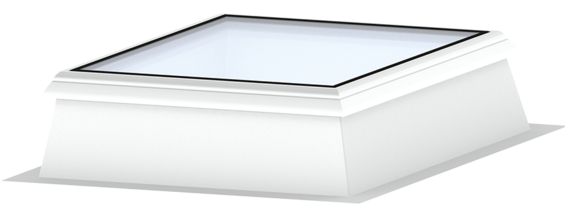

Glass Skylights with plastic frame
Our classic with plastic frame
Floods administration and office buildings with essential daylight
Give your design requirements free rein: With sizes up to 1.5 m
With double or triple insulating glazing or sun protection glazing: Effective against strong heating up in summer
Good thermal insulation with a U value of up to 1.0 W/(m²K)
White, visually appealing and stable plastic frame
Our Glass Skylights are safe: Tested fall-through protection according to DIN 18008-6
Glass Skylights with aluminium frame
Our premium product with high-grade aluminium frame
The high-quality eye-catcher for administrative buildings and upscale residential construction
Optimum luminous efficiency: Thanks to a wide range of sizes up to 2.5 m
Whether acoustic insulation, thermal insulation or sun protection: Select from our wide range of glazing versions for your application
Very good thermal insulation with a U value of up to 0.68 W/(m²K) in passive-house standard
Whether elegant black or modern grey: Choose the colour of your aluminium frame according to your architectural requirements
Cleaning even safer: Tested fall-through protection and accessibility for cleaning and maintenance purposes according to DIN 18008-6
Infinite possibilities,
individual application purposes –
our Glass Skylights
Our premium Glass Skylight with aluminium frame
Many sizes, diverse glazing, numerous versions and best thermal insulation values

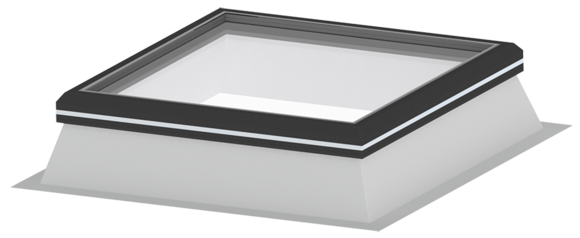

Glass Skylight FE 0°
For design lovers: Smooth, visually appealing design without visible screw connections and welding seams
No more dirty edges: The structural glazing construction ensures a flat water drainage
Optimal for passive houses: Passivhaus-certified version in the phC class
The benefits at a glance
Design
- Award-winning:
German Design Award, reddot design award, Plus X Award - Uniform appearance
- Aesthetic, classical and elegant design language
- Avoidance of dirt on the glass surface
- Wide variety of colours based on RAL system (surrounding profile)
Variety
- Large range of sizes
- Customisation to the overall concept
- Various glazing types
- Various drive options
Quality
- Passivhaus standard certified skylight in Passivhaus efficiency class phC
- Overall structure free of thermal bridges
- Water tightness under driving rain to DIN EN 1027 = E (1950)
- Optimised soundproofing and minimised rain noise
- Long service life
- Permeability to air in line with DIN EN 1026 = Class 4
- Life-cycle assessment made easy: There is a comprehensive Environmental Product Declaration for the Glass Skylight FE in accordance to ISO EN 15804
Use
- Our Flat Roof Window FE is BIM-Ready - Download at bimobject.com
- Fully pre-assembled
- Simple installation
- Efficient maintenance
- Versatile adapter frame
Safety
- Fall-proof according to DIN EN 18008-6
- Flat Roof Window with general building inspection approval in "Structural Glazing" construction method - certified by the German Institute for Construction Technology in Berlin (DIBt)
- Smoke exhaust opening
- Resistance against wind load in line with DIN EN 12211 = C5
- Resistance to external fire exposure from flying sparks and radiant heat with classification B,roof(t1) according to DIN EN 13501-5

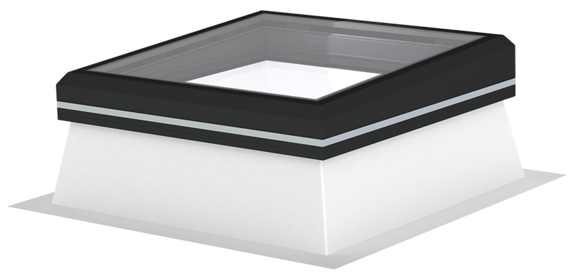

Glass Skylight FE 3°
Flat roof without inclination? No problem: Particularly suitable for flat roofs with no or low inclination < 3°
For design lovers: Visually appealing design without visible screw connections
No more dirty edges: Unhindered water and dirt drainage due to a 3° inclination of the element and structural glazing construction
The benefits at a glance
Quality
- Optimal thermal insulation thanks to overall structure free of thermal bridges
- Intelligent controls for natural ventilation and sun protection blinds
- Optimised soundproofing and minimised rain noise
- Tightness against driving rain as per DIN EN 1027 = E (1950)
- Permeability to air in line with DIN EN 1026 = Class 4
- Resistance against wind load in line with DIN EN 12211 = C5
- Life-cycle assessment made easy: A comprehensive environmental declaration as per DIN EN 15804, DIN EN ISO 14040, DIN EN ISO 14044 and DIN EN ISO 14025 is available for the LAMILUX Glass Skylight FE 3°
Design
- Uniform appearance
- Aesthetic, classical and elegant design language
- Stepless transition between frame profile and glazing
- Unobstructed drainage of water and dirt thanks to the element's 3° inclination
- Award winning design
- Wide variety of colours based on RAL system (surrounding profile)
Safety
- Approved fall-through protection as per DIN 18008-6
- Resistance to external fire exposure from flying sparks and radiating heat with classification B, roof (t1) as per DIN EN 13501-5
- High hail resistance thanks to TSG outer pane as a standard feature
Use
- Our LAMILUX Glass Skylight FE 3° is BIMready – Download at bimobjects.com
- Fully pre-assembled delivery of the element to the construction site
- Simple installation
- Efficient maintenance

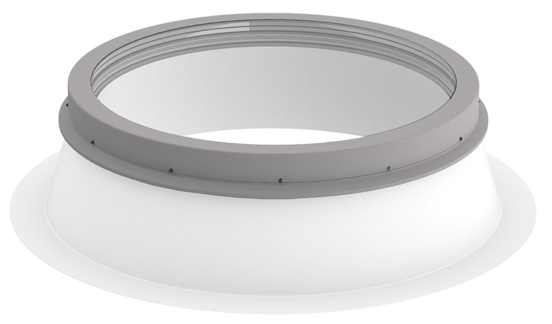

Glass Skylight FE Circular
Real eye-catcher: The circular, harmonious shape is ideal for educational buildings
Prevents water accumulations: Good water drainage due to optional upstand with 5° inclination
The benefits at a glance
Energy efficiency
- High daylight incidence with numerous glazing types
- Available with double or triple glazing, TSG on the outside and LSG on the inside (LSG can be fitted with a clear or light-coloured matt film) with Ug-values of 1.1 to 0.6 W/(m²K)
- Outstanding airtightness thanks to the balloon double-sealing system: Performance class 4 – tested in accordance with EN 12207
- Optimal thermal insulation thanks to the overall structure free of thermal bridges
- Intelligent controls for natural ventilation
- Life-cycle assessment made easy: A comprehensive environmental declaration as per DIN EN 15804, DIN EN ISO 14040, DIN EN ISO 14044 and DIN EN ISO 14025 is available for the LAMILUX Glass Skylight FE
Comfort
- NEW: Upstands with 5° inclination for optimised self-cleaning available
- Pleasant indoor climate thanks to natural ventilation
- Effective soundproofing of glazing types (DIN EN ISO 140-3 up to 45 dB)
- Daylight element and upstand are fully pre-assembled at the factory and locked. This means they can be retrofitted with an opener system at any time.
Safety
- Approved fall-through protection
- Minimised risk of condensation on the glazing’s interior and on the frame profile
- Anti-burglary protection: Also available with resistance class 2
- Resistance to external fire exposure from flying sparks and radiating heat with classification B, roof (t1) as per DIN EN 13501-5
Design
- Discreet appearance from inside and outside
- Wide variety of colours based on RAL system (surrounding profile)

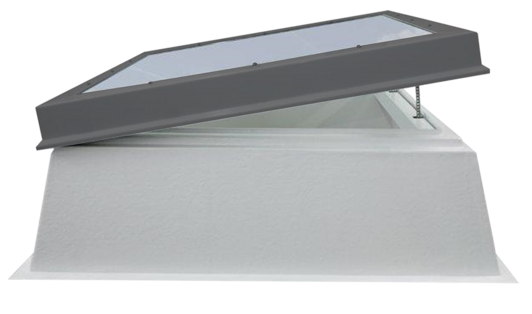

Glass Skylight Passivhaus standard
For buildings with high energy demands and passive houses
Passivhaus-certified glass skylight in the highest class phA
Optimal for regions with cool temperate or cold climate: Tested heat transition coefficient USL of up to 0.68 W/(m²K)
The benefits at a glance
Certified energy efficiency
- First skylight certified to Passivhaus standard
- Highest Passivhaus efficiency class – phA advanced component
- Heat transmission coefficient (USL): 0.84 W/(m²K)
- Overall system with flawless isothermal characteristics and free of thermal bridges
- Thermal performance values calculated based on DIN EN ISO 10077-1 and 10077-2
- Outstanding air-tightness due to a balloon double sealing system: Performance class 4 – tested in accordance with EN 12207
- Life cycle assessment made easy: There is a comprehensive Environmental Product Declaration for the LAMILUX Glass Skylight FE Passivhaus in accordance with ISO 14025 and EN 15804 (EPD – modules A1 - D)
Comfort
- Pleasant indoor climate due to natural ventilation and sun protection
- Adjustable sun protection on the inside or outside
- High sound insulation
- Convenient remote control for ventilation and sun protection systems
- Daylight element and upstand are fully pre-assembled at the factory and locked – they can thus be retrofitted with an opener system at any time
Design
- Discreet appearance from inside and outside
- Wide variety of colours based on RAL system (surrounding profile)
Safety
- Best possible comfort and hygiene properties according to DIN 4108-2 on the glazing’s interior as well as the frame and cross-bar profiles
- Permanent fall-through-proof
- Resistance to external fire exposure from flying sparks and radiant heat with classification B,roof(t1) according to DIN EN 13501-5

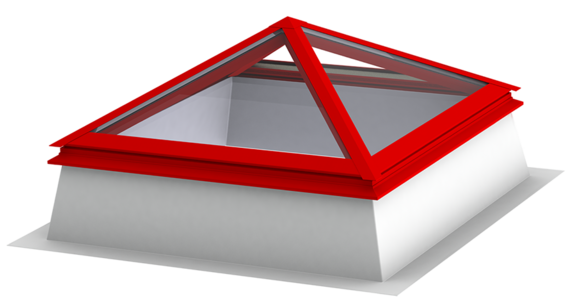

Glass Skylight Pyramid
Elegant and narrow cross-bar profiles ensure a filigree appearance from the inside and outside
For architecture lovers: Smooth, clean look without visible screw connections
Optimum self-cleaning effects: Thanks to unhindered water drainage
The benefits at a glance
Energy efficiency
- High daylight incidence with numerous glazing variants
- Optimal thermal insulation due to thermal-bridge-free overall structure
- Intelligent controls for natural ventilation and sun protection blinds
- GRP upstand thermally insulated over its entire surface with a U-value of < 0.9 W/m²K
- Thermally optimised structural attachment, such as a thermally insulated base flange
- Outstanding air-tightness due to a balloon double sealing system: Performance class 4 – tested in accordance with EN 12207
- Life-cycle assessment made easy: There is a comprehensive Environmental Product Declaration for the LAMILUX Glass Skylight FE Pyramid / Hipped in accordance to ISO EN 15804
Comfort
- Pleasant indoor climate due to natural ventilation and sun protection
- High sound insulation (EN ISO 140-3 up to 45 dB)
- Convenient wireless remote control for ventilation and sun protection system
- Daylight element and upstand are fully pre-assembled at the factory and locked – they can thus be retrofitted with an opener system at any time
Design
- Discreet appearance from inside and outside with slim, elegant cross-bar profiles
- Sleek, uncluttered view of the overall structure with no visible screws
- Wide variety of colours based on RAL system (surrounding profile)
Safety
- Permanent fall-through protection (DIN 18008-6)
- Minimised risk of condensation on the glazing’s interior as well as on the frame and cross-bar profiles
- Resistance to external fire exposure from flying sparks and radiant heat with classification B,roof(t1) according to DIN EN 13501-5

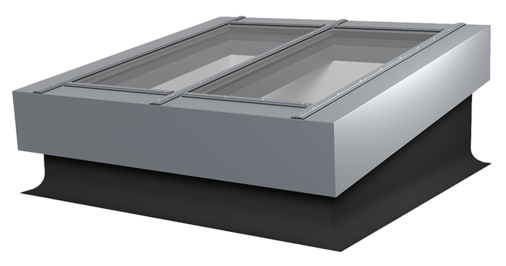

Glass Skylight Fire Resistance
Element installed on steel upstand
Quick and easy assembly, as it is pre-assembled at the factory
Ensures room closure and load-bearing capacity in case of fire even under load for:
30 minutes by the REI 30
60 minutes by the REI 60 or
90 minutes by the award-winning REI 90 (NEW)
The benefits at a glance
Fire protection windows withstand fire and heat
A fire-resistant window is a window that withstands fire and heat for a certain period of time in case of fire. The higher the performance class, the longer the period and the hotter the fire. During this time, the component must ensure the room closure, bear its own weight and any additional loads and limit the heat transfer. The fire-resistant window obtains this protection through special layers in the glass panes and materials and construction details of the frame and support profiles. This prevents the spread of fire to other sections of the building for up to 90 minutes.
Glass Skylight Fire Resistance
The LAMILUX Glass Skylight Fire Resistance is pre-assembled on a steel upstand and limited to truck loading width. It is installed in public buildings such as educational institutions, cultural facilities or shopping centres, among others. A lot of people stay in these buildings, for whom our product keeps the escape and rescue routes clear for up to 90 minutes. With the new Glass Skylight Fire Resistance REI 90, we have succeeded in extending our previous protection of 30 resp. 60 minutes even further.
Glass Roof Fire Resistance
The LAMILUX Glass Roof Fire Resistance offers strong protection in case of fire. Our LAMILUX Glas Roof Fire Resistance is available in different versions and can cover larger areas. Due to that it needs to be assembled on site. The Glass Roof Fire Resistance REI 30 withstands fire and heat for at least 30 minutes, the product variant Glass Roof Fire Resistance REI 60 even 60 minutes. We will be happy to provide you with comprehensive and competent advice on our products and how you can integrate all the requirements relating to fire protection safety into your building project.
Reliable partner in fire protection by LAMILUX Service
When using fire-resistant windows in a building project, it is absolutely necessary that the fire-resistant windows are installed professionally. Therefore, only certified specialist companies should be used for the installation. In most cases, the building authority requires a declaration from the installing company regarding the professional installation of the fire-resistant windows. This is because there are many different requirements to be met when installing fire-resistant glazing so that the fire-resistant windows are fully functional and save lives in the event of a fire. That's why you trust the experience and service of fire protection specialists. We are your reliable partner for fire-resistant windows.
Downloads
Our glass skylight with plastic frame
The classic for administration and office buildings with good thermal insulation values
Glass Skylight F100
No more annoying dirty edges: The new structural glazing construction provides for a level water drainage - the first glass skylight of its kind
The overall construction without thermal bridges ensures good thermal insulation with a U value of 1.21 to 1.00 W/(m²K)
See for yourself - discover the performance of the glass skylight before the installation already by planning with our BIM product configurator
The benefits at a glance
Energy efficiency
- Available in double or triple glazing, toughened safety glass (TSG) on the outside and laminated safety glass (LSG) on the inside (LSG can be fitted with a clear or matt-light film) with Ug-values of 1.1 to 0.61 W/m²K
- Structure completely free of thermal bridges with a Uw-value between 1.45 and 0.94 W/m²K, depending on the glazing (as per EN ISO 10077-1 for a reference element measuring 120cm x 120cm)
- Thermally insulated, jointless GRP upstand, with a height of 15, 30, 40 or 50cm, with U-values of 0.5 W/m²K to 0.9 W/m²K (depending on the characteristics)
- Outstanding air-tightness due to the new double balloon sealing system: Performance class 4 – tested in accordance with EN 12207
- Thermally optimised structural attachment, such as a thermally insulated base flange
- Life-cycle assessment made easy: There is a comprehensive Environmental Product Declaration for the Glass Skylight F100 in accordance to ISO EN 15804
Comfort & Design
- Farewell to dirty edges: The newly designed frame profile has a smooth transition between the glazing and the frame, allowing rainwater to run off without any obstructions
- The new chain drive technology complies with protection class IP 54 and allows easy opening for ventilation purposes
- Chain drive – concealed from view and equipped with new, IP 54-rated technology
- Our Glass Skylight F100 is BIM-ready – Download at bimobject.com
- Generous daylight incidence and lasting clear views due to scratchproof glazing
- Extra convenience, if required, with structural mounts for membrane roofs, prepared at the factory
- Optimised sound insulation and minimised rain noise due to special glazing (Rwp = 38 dB)
- White, silk-matt appearance inside – no additional drywall construction required
- Optional connection to comfort control unit with wireless remote controls
- Sun protection inside and outside (optional)
Stability
- Tested watertightness, even in high wind speeds (driving rain impermeability, in accordance with EN 12208, Class E 1500)
- Very high load-bearing capacity due to optimised profiles
- Approved fall-through protection
- Excellent stability under wind and snow loads
- UV-resistant edge bond
Safety
- The first building approved glass skylight in “Structural Glazing” design – certified by the German Institute for Structural Engineering (Deutsche Institut für Bautechnik, DIBt) in Berlin
- Condensation resistant between glass panels, due to thermally decoupled edge bond, unlike plastic domes
- Preventive fire protection: Compliance with DIN 18234 – to prevent fire spread on the roof without additional measures such as gravel fill
- Can be used as a SHEV system in staircases
- Delivery of Glass Skylight F100 completely pre-assembled on the upstand
- Resistance to external fire exposure from flying sparks and radiant heat with classification B,roof(t1) according to DIN EN 13501-5

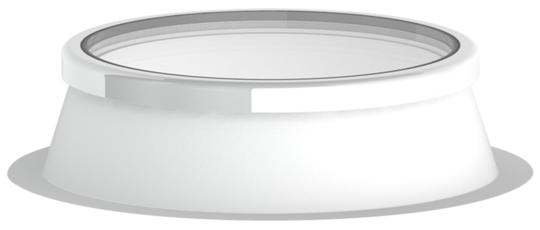

Glass Skylight F100 Circular
Would you like something more unusual? The circular, harmonious shape makes educational buildings an eye-catcher
The overall construction without thermal bridges ensures good thermal insulation with a U value of 1.08 to 0.89 W/(m²K)
The interior design also shines with a smooth look thanks to optional concealed drives
No more annoying dirty edges: The structural glazing construction and the optionally selectable upstand with 5° inclination provide for unhindered water drainage and thus prevent dirt accumulations
The benefits at a glance
Energy efficiency
- Available in double or triple insulating glazing with TSG on the outside and LSG on the inside (LSG can be fitted with a clear or matt-light film) with Ug-values of 1.1 to 0.8 W/m²K
- Structure completely free of thermal bridges with a Uw-value between 1.1 and 0.76 W/m²K, depending on the glazing (as per EN ISO 10077-1)
- Thermally insulated, jointless GRP upstand, with a height of 70, 50 or 30cm with U-values ≥ 0.68 W/m²K
- Outstanding air-tightness due to the new balloon double sealing system: Performance class 4 – tested in accordance with EN 12207
- Life cycle assessment made easy: There is a comprehensive Environmental Product Declaration for the LAMILUX Glass Skylight F100 Circular in accordance with DIN EN 15804, DIN EN ISO 14040, DIN EN ISO 14044 and DIN EN ISO 14025
Comfort & Design
- NEW: Chain drives which are invisibly integrated into the upstand, available – Awarded the German Design Award 2020 in the category Winner
- NEW: 5° inclined upstands available for an ideal self-cleaning effect
- Flat drainage surface: The newly designed frame profile provides a smooth transition between the glazing and the border frame, creating an unobstructed drain for rainwater
- Permanently clear view and generous daylight through scratch-resistant glazing
- Our Glass Skylight F100 Circular is BIM-ready – Download at bimobject.com
- Generous daylight incidence and lasting clear views due to scratchproof glazing
- White, silk-matt appearance inside – no additional drywall construction required
Stability
- Tested watertightness, even in high wind speeds (driving rain impermeability, in accordance with EN 12208, Class E 1950)
- Very high load-bearing capacity due to optimised profiles
- Approved fall-through protection
- Excellent stability under wind and snow loads
- UV-resistant edge bond
Safety
- The first building approved glass skylight in “Structural Glazing” design – certified by the German Institute for Structural Engineering (Deutsche Institut für Bautechnik, DIBt) in Berlin
- Condensation resistant between glass panels due to thermally decoupled edge bond, unlike plastic domes
- Preventive fire protection: Compliance with DIN 18234 – to prevent fire spread on the roof without additional measures such as gravel fill
- Can be used as an SHEV system in staircases
- Delivery of Glass Skylight F100 completely pre-assembled on the upstand
