Flat Roof Hatches
Exclusive access to the roof terrace
Flat Roof Access Hatches
The perfect access to the roof - Individual luxury – daylight at its best
With maximum glass surface and high-quality materials, our Flat Roof Access Hatches become the highlight on the roof of any building. In addition to optimised thermal insulation values and proven durability, the focus is primarily on architectural standards and comfort. We offer you flat roof access hatches in various sizes and opening variants to ensure the ideal solution on your roof. Our elements also meet individual requirements in terms of glazing and can be freely configured with thermal insulation or special solar protection glazing. We offer you the full colour range of the RAL chart, inside as well as outside, for our high-quality aluminium frame construction. In addition, our products can be designed as a blind system with external shade systems to reduce the amount of heat entering the building in summer.
Choose the right opening system for you
Flat Roof Access Hatch with folding mechanism or horizontal opening?
Flat Roof Access Hatch with folding mechanism
For more space on your roof terrace thanks to folding mechanism
Convenient and simple stepless opening due to concealed hydraulic cylinder
Roof access hatch folds up by 70° or 84° in just a few seconds
Flood your building with maximum daylight incidence using a filigree frame construction
With triple insulating or solar protection glazing effective against significant heat build-up in summer
Very good thermal insulation with an Ug value of approx. 0.6 W/(m²K)
Our Flat Roof Access Hatches are safe: approved fall-through protection according to DIN 18008-6

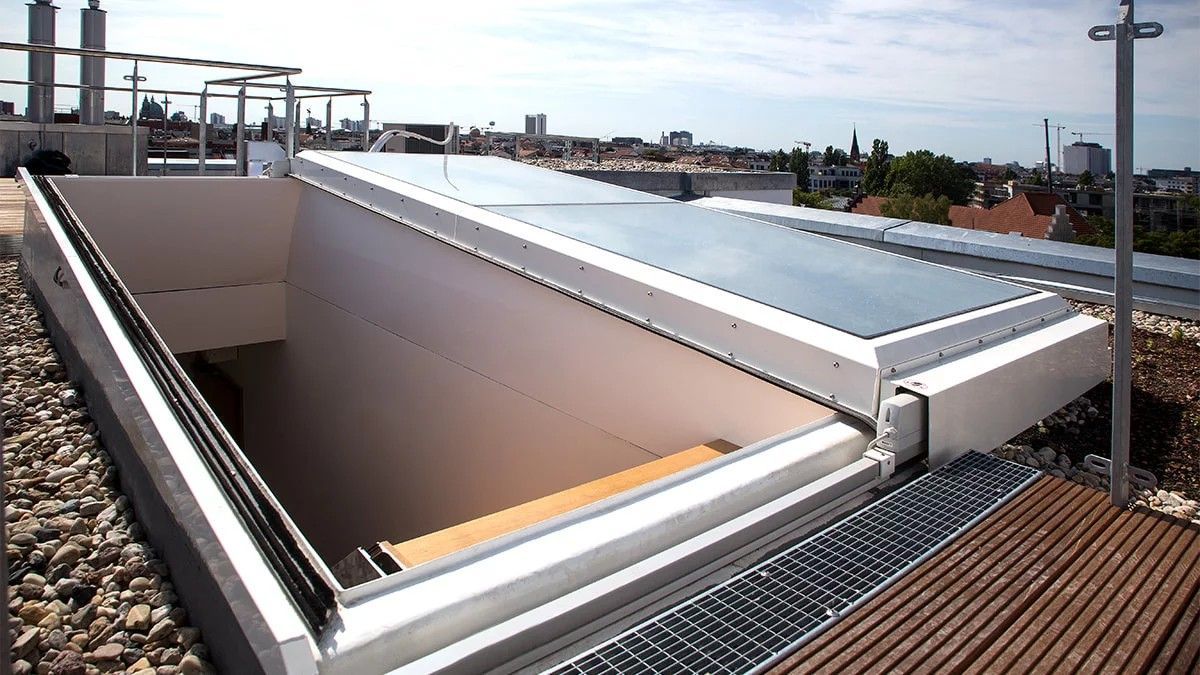

Flat Roof Access Hatch with horizontal opening
Horizontal opening by means of two or four concealed rack-and-pinion drives
Comfortable access to the roof terrace via stairs (provided by customer) with a width of 120 cm
With double or triple insulating or solar protection glazing effective against significant heat build-up in summer
Very good thermal insulation with an Ug value of 0.6 W/(m²K) (Solo) or 1.1 W/(m²K) (Duo)
Our Flat Roof Access Hatches are safe: approved fall-through protection according to DIN 18008-6
Maximum daylight,
optimum energy values –
our Flat Roof Access Hatches Comfort
Our Flat Roof Access Hatches with folding mechanism
Best fit for your roof terrace

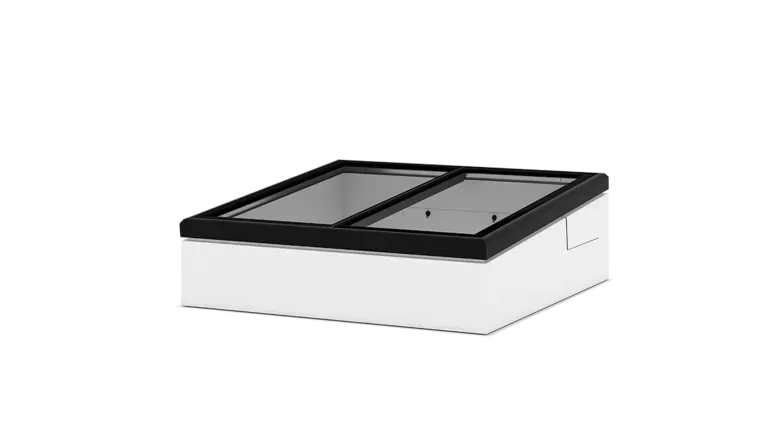

Flat Roof Access Hatch Comfort Square
Architectural freedom for planning, roof access now also possible via spiral and platform staircase (provided by customer)
For more space on your roof terrace thanks to the folding mechanism: roof access hatch folds up by 70° in approx. 45 seconds
Maximum daylight incidence due to intricate frame construction with 4 m² glass surface
Advanced self-cleaning effect due to 5° inclined glass surface and level water drainage
The benefits at a glance
LAMILUX Flat Roof Access Hatch Comfort Square
Design & Comfort
- Winner of the Red Dot Design Award 2021 in the category Product Design
- Maximum daylight incidence with 4m² glass area
- Architectural freedom for architects, roof access now also possible via spiral and platform stairs (on-site)
- Optimum fit for your roof terrace, access can be realized via all three open sides
- Flat roof exit opens up 70° in approx. 45 seconds
- Folding mechanism provides more space on the roof terrace
- Self-cleaning due to inclined upstand and level transition from frame to glazing
- Stepless opening through hydraulic cylinder
- Variety of colors according to RAL card (edging profiles and reveal surface)
- Leaf system, motor opener and top element are completely pre-assembled at the factory
Safety
- Emergency stop function during closing process monitored by light barrier
- Closing and opening of the element via key switch
- Can be opened or closed during a power failure by manual operation with a hand lever
- Compliance with DIN 18234 without additional measures (prevention of fire expansion on the flat roof)
- Fall-through-proof according to DIN 18008-6
- As a standard: Outer pane TSG, inner pane LSG
- Resistance to external fire exposure from flying sparks and radiant heat with classification Broof(t1) according to DIN EN 13501-5
Energy Efficiency
- Complete construction without thermal bridges
- Completely thermally insulated upstand
- Can be equipped with the highest quality functional glass
- Minimized risk of condensation

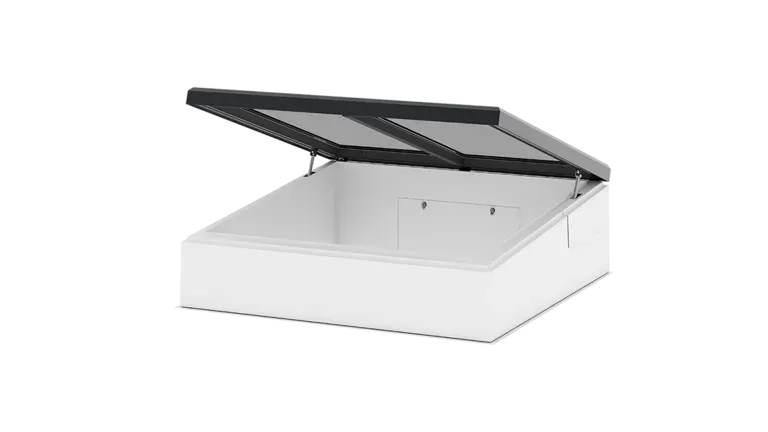

Flat Roof Access Hatch Comfort Swing
Convenient access to the roof terrace using the staircase (provided by customer)
For more space on your roof terrace thanks to the folding mechanism: roof access hatch folds up by 84° in approx. 25 seconds
Maximum daylight incidence due to filigree frame construction in two different sizes: 100 x 300 cm and 100 x 350 cm
Advanced self-cleaning effect due to 5° inclined glass surface and level water drainage
The benefits at a glance
LAMILUX Flat Roof Access Hatch Comfort Swing
Design & comfort
- Winner of the German Design Award 2020 in the Category Special Mention
- Awarded with the Readers' Choice Award 2021 in the category Building Envelope Windows & Doors
- Generous daylight incidence
- Convenient access to the roof terrace via stairs (on-site)
- Flat roof access hatch opens 84° in approx. 25 seconds
- Folding mechanism provides more space on the roof terrace
- Self-cleaning due to inclined upstand
- Top element and flat transition from frame to glazing
- Stepless opening by hydraulic cylinder
- Variety of colours according to RAL card (edging profiles and reveal area)
- Leaf system, motor opener and top element are completely pre-assembled at the factory
- Opening side DIN left or DIN right selectable when ordering
Safety
- Emergency stop function during closing by light barrier
- Closing and opening of the element possible via optional key switch
- Can be opened or closed during a power failure by manual operation with a hand lever
- Compliance with DIN 18234 without additional measures (prevention of fire expansion on the flat roof)
- Fall-through proof according to DIN 18008-6
- As a standard: Outer pane TSG, inner pane LSG
- Resistance to external fire exposure from flying sparks and radiant heat with classification Broof(t1) according to DIN EN 13501-5
Energy Efficiency
- Complete construction without thermal bridges
- Completely thermally insulated upstand
- Can be equipped with the highest quality functional glass
- Minimized risk of condensation
Highest design standards
with maximum benefit –
our Flat Roof Access Hatches Comfort
Our Flat Roof Access Hatches with horizontal opening
Secure access to your roof terrace

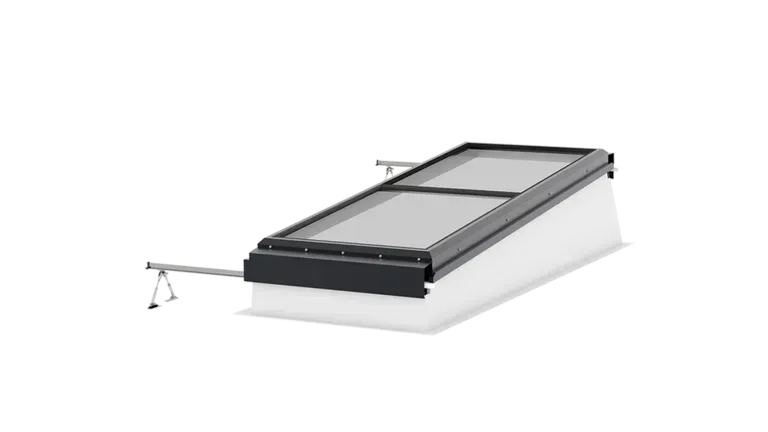

Flat Roof Access Hatch Comfort Solo
The roof access hatch allows you to have a stepless ventilation position: horizontal opening via two 24V drives
Various triple glazing types with an Ug value of approx. 0.6 W/(m²K)
Maximum daylight incidence due to filigree frame construction in size 120 x 350 cm
Unhindered water and dirt drainage thanks to 6° inclination of the element
The benefits at a glance
LAMILUX Flat Roof Access Hatch Comfort Solo
Design & Comfort
- Winner of the German Design Award 2017 in the Category Special Mention
- generous daylight incidence
- convenient access to the roof terrace via stairs (on-site)
- Self-cleaning due to 6° inclined upstand
- Infinitely variable ventilation position of the leaf
- Clear optics: no interfering edges and no visible drive units in the interior
- Variety of colours according to RAL card (edging profiles)
- leaf system, motor opener and upstand are completely pre-assembled at the factory
- opening side DIN left or DIN right selectable when ordering
Energy efficiency
- as a standard 3-pane insulating glass with Ug-value 0.6 W/m²K
- Complete construction without thermal bridges
- Completely thermally insulated upstand
- Can be equipped with the highest quality functional glass (on request)
- Minimized risk of condensation
Safety
- Emergency stop function during closing process monitored by light barrier
- Closing and opening from outside possible via optional key switch (min. IP54)
- Complies with DIN 18234 without additional measures (prevention of fire expansion on the flat roof)
- As a standard: Outer pane TSG, inner pane LSG
- Resistance to external fire exposure from flying sparks and radiant heat with classification Broof(t1) according to DIN EN 13501-5
- Fall-through proof according to DIN 18008-6

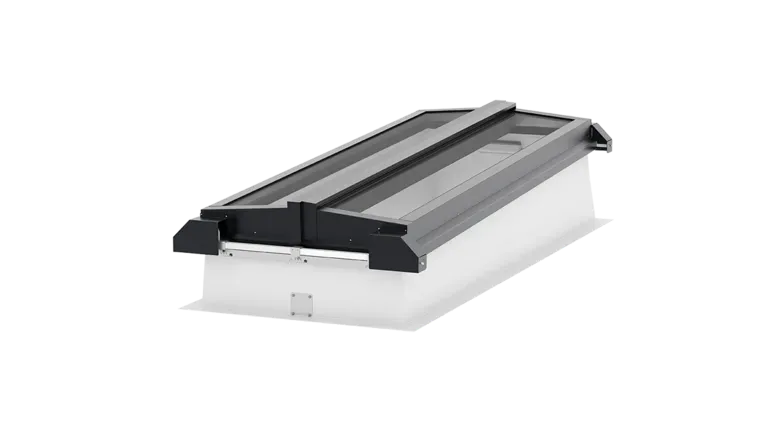

Flat Roof Access Hatch Comfort Duo
The roof access hatch allows you to have a continuously adjustable ventilation position for both opening flaps: horizontal two-sided opening with four 24V drives
Various double glazing types with an Ug value up to 1.0 W/(m²K)
Size 120 x 300 cm
Good water and dirt drainage thanks to inclined glazing and 3° inclination of the element
The benefits at a glance
LAMILUX Flat Roof Access Hatch Comfort Duo
Design & Comfort
- Generous daylight incidence
- Convenient access to the roof terrace via stairs (on-site)
- Self-cleaning due to 5° inclined upstand
- Partial glazing on a 3° sloping upstand on the eaves side
- Infinitely variable ventilation position of both leaves
- Clear optics: no interfering edges and no visible drive units in the interior
- Variety of colours according to RAL card (edging profiles)
- leaf system, motor opener and upstand are completely pre-assembled at the factory
Energy efficiency
- Complete construction without thermal bridges
- Completely thermally insulated upstand
- Can be equipped with the highest quality functional glass
- Minimized risk of condensation
Safety
- Closing and opening from outside possible via optional key switch (min. IP54)
- Emergency stop function during closing by light barrier
- Compliance with DIN 18234 without additional measures (prevention of fire expansion on the flat roof)
- As a standard: Outer pane TSG, inner pane LSG
- Resistance to external fire exposure from flying sparks and radiant heat with classification Broof(t1) according to DIN EN 13501-5
- Fall-through proof according to DIN 18008-6
