Safescape® – T5000 Series
This smoke and fire rated door assembly is designed to coil at the top allowing the rigid bottom frame with fixed egress doors to lower when deployed.
TECHNICAL INFORMATION
downloads and details
Once in place, the single or multiple swinging egress doors provide complying egress. Large occupant loads and wide-span openings are easily accommodated by the McKEON T5000.
The Safescape® T5000 Series Fire Door Systems are generally used in high occupancy applications such as convention centers, casinos, arenas, sports centers and museums. Large occupant loads and wide-span openings are easily accommodated by the McKEON T5000.
Ratings
3-hour rated UL 10B*
90-minute rated assembly with a 650° F over 30 minutes Temperature Rise rating when required
Smoke & Draft labeled UL 1784
Code Compliance
CCRR-1086 – ADA compliant
Egress
Available with up to 18 complying egress swing doors
Operation
Auto-Set® automatic resetting
Fail-Safe Design – automatic self-closing mechanism does not require power operation
Size
Unlimited heights and widths to 80′; for larger sizes and custom configurations consult the factory
Finishes (metal components)
McKEON Sterling Gray
Powder coat of any color as selected
Stainless Steel — No. 4 Polish or No. 8 Mirror
Product Specifications
Specifications & Tech Data
This product is not available in Quebec. Therefore some of the following downloads may not be available in French.

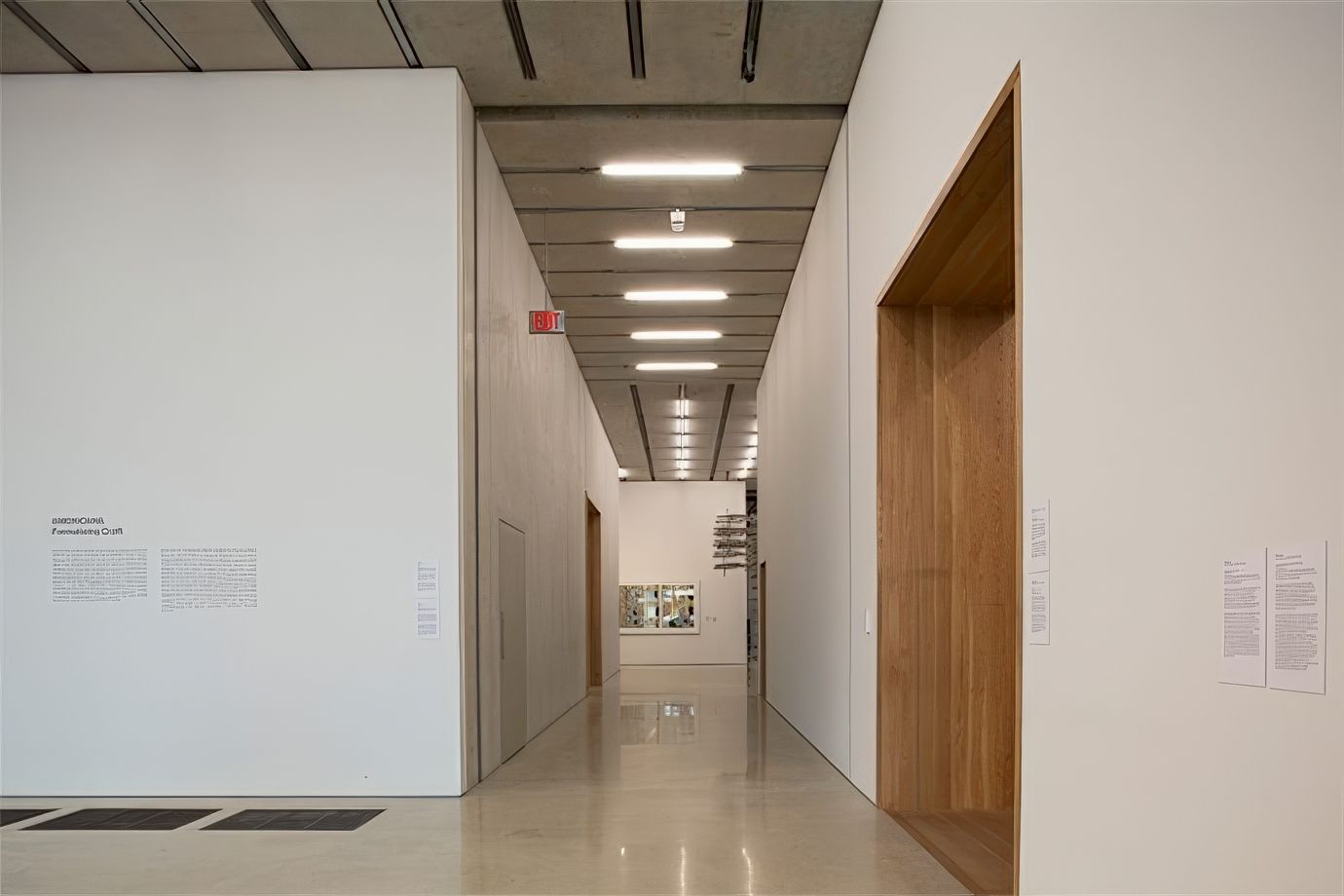

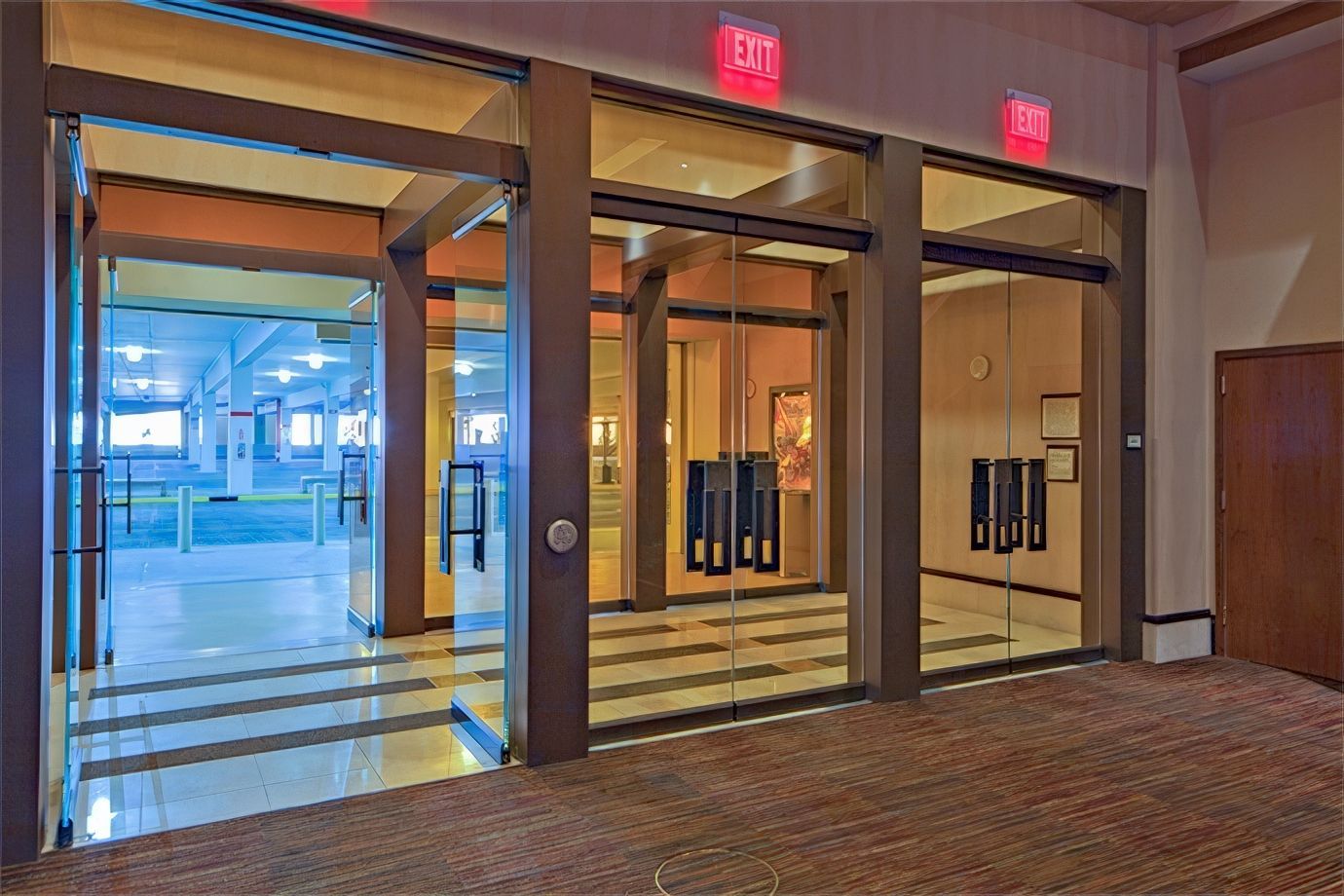

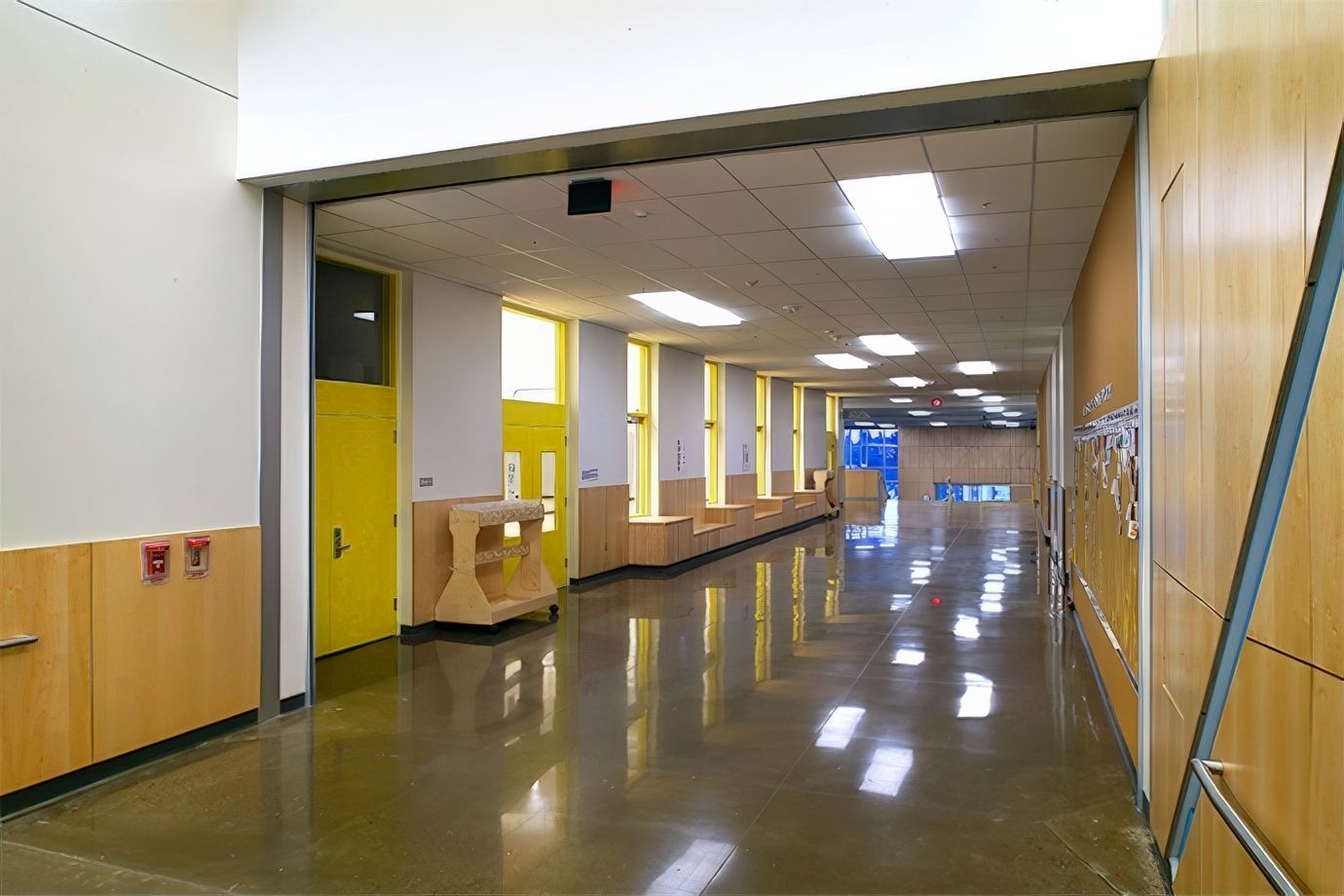

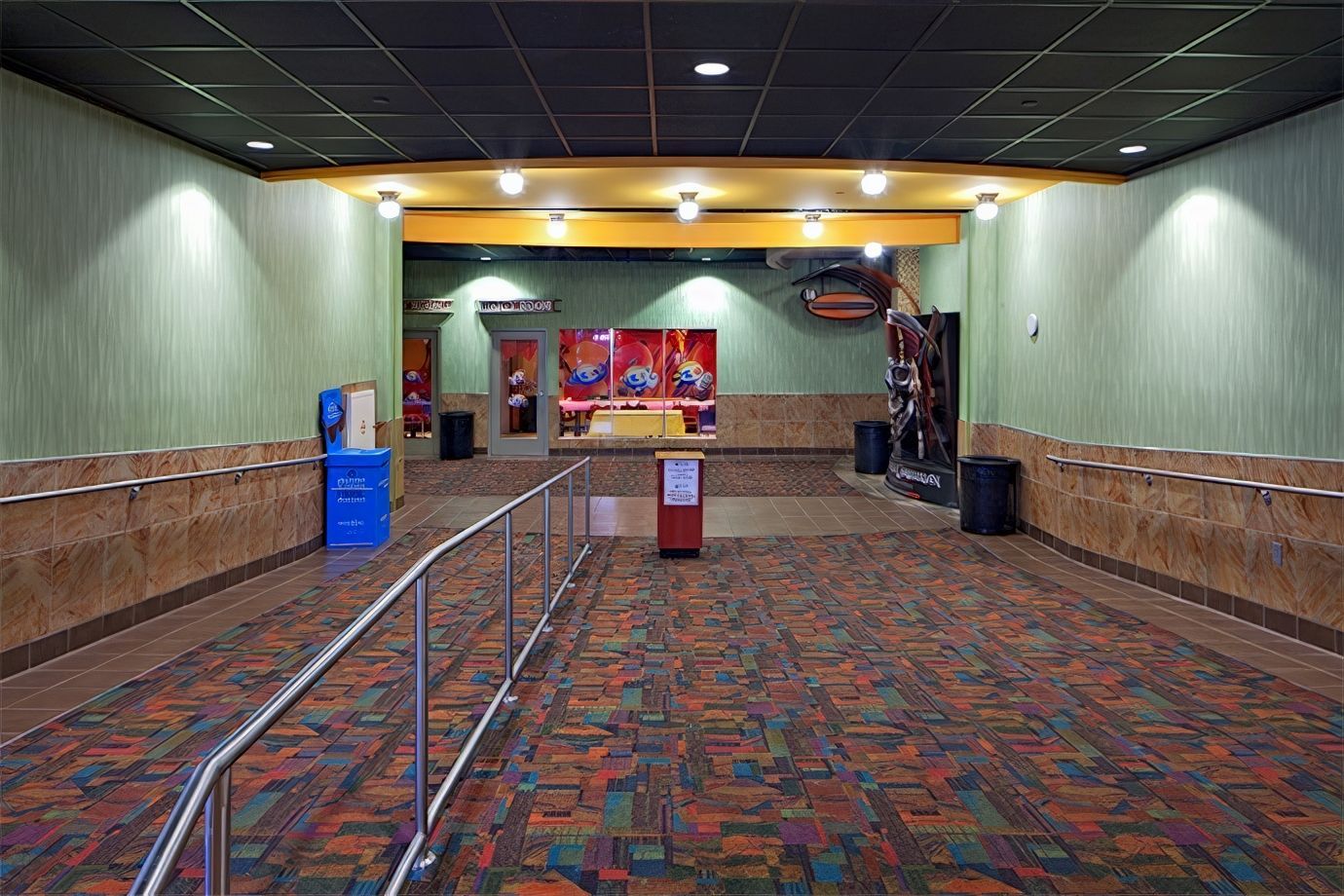

This Product in action
