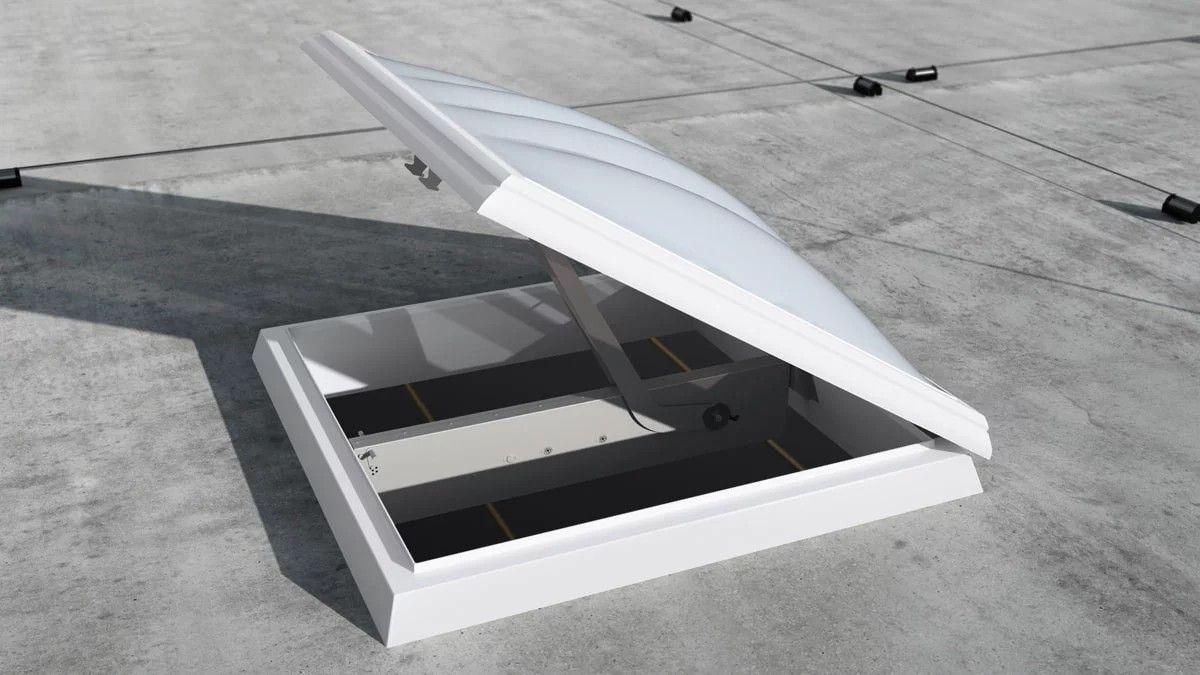

Rooflight Domes
The classic solution for flat roofs
Domed rooflights for customised skylight solutions
Diversity and flexibility combined on the industrial roof
From standard industrial rooflights to complex special solutions – LAMILUX dome rooflights are the classic option for flat roofs and the basic product among skylights. With customised features, the largest number of standard sizes available on the market and a wide variance of upstands, our dome rooflights offer flexibility, quality, energy efficiency, ease of use, and service for demanding industrial roofs. Thanks to a multiple sealing system and up to four layers of plastic glazing, the LAMILUX domed rooflight is a true energy miracle. The warp-resistant border frame and the thermally insulated upstand made of glass-fibre reinforced composite also contribute to its considerable heat insulation performance. The upstand is a key component in the whole rooflight dome system. Constantly further developed in terms of stability and heat-insulating properties, the upstand forms the base for the structure. We manufacture our GRP upstand in fibre composite as a one-piece moulded element. It is torsion resistant and delights customers with its seamless appearance, long-lasting durability thanks to corrosion and weather resistance, and energy efficiency thanks to thermal bridge-free construction and complete insulation. In addition, our customers appreciate the short delivery times thanks to our in-house upstand production and the simple assembly enabled by completely pre-assembled delivery of upstand and top section.
Our complete rooflight package is rounded off by the variety of glazing options. For optimal daylight supply of the building, our customers can choose from individual glazing systems. These increase the well-being of building users thanks to the natural incidence of light whilst benefiting a reduction in the electricity costs for electric lighting. LAMILUX flat roof domes set new standards in terms of health and safety in industrial buildings. The skylights provide glare-free daylight illumination of the rooms, natural fresh air supply and, through integrated smoke and heat exhaust ventilation units (SHEVs), safety in case of fire. Daylight and fresh air are firmly anchored components in legal workplace regulations, as increased daylight incidence and regular ventilation promote the concentration of workers and create a healthy indoor climate. Additional SHEV units integrated into the dome rooflights dissipate toxic smoke and harmful gases in the event of fire and keep escape routes smoke-free. In this way, our skylights create a healthy and safe working atmosphere. Our product portfolio includes several rooflight dome variants – for individual, precisely fitting solutions on the industrial flat roof.
Choose the right domed rooflight for you
LAMILUX rooflight domes – Greater stability, greater design and greater comfort

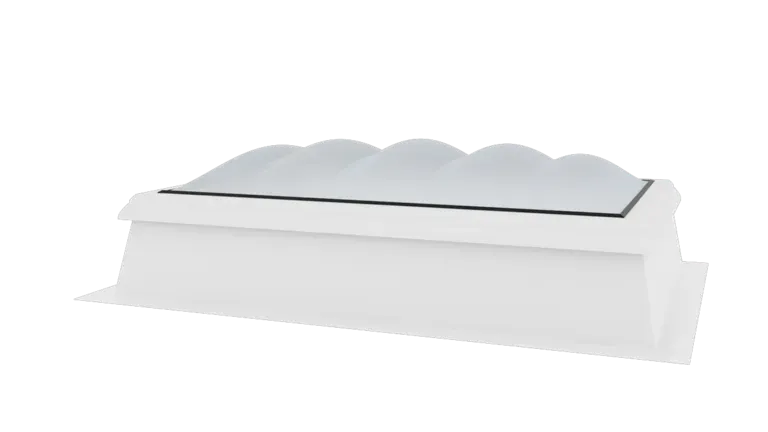

Rooflight F100 W
The new standard for the industrial flat roof
High level of stability under heavy loads
Reliable solution for all extreme weather conditions
Optimum thermal insulation with a U-value of up to 1.3 W/(m²K)
Can be combined with smoke and heat exhaust ventilation units (pneumatic and electric)
Greater safety on the roof thanks to 7 different fall-through protection grid variants
Available in over 50 sizes
The benefits at a glance
Energy efficiency
- Fulfilment of all requirements of the current Energy Performance of Buildings Directive (EnEV) and the German Building Energy Act 2020 (GEG)
- Fully insulated GRP upstand with a U-value of 0.95 W/m²K
- Perfect thermal connection (e.g. a thermal insulated base flange)
- Design completely free of thermal bridges for optimum U-values and reduced risk of condensation
- Excellent life cycle assessment due to comprehensive Environmental Product Declaration (EPD) according to DIN EN 15804, DIN EN ISO 14040, DIN EN ISO 14044 and EN ISO 14025
Stability
- Greater stability under extreme loads due to geometrically optimised design
- High resistance to wind load (≥ UL 1780) and snow load (≥ DL 3000) according to DIN EN 1873
- Certified watertightness in heavy rain and during storms
- Tested Driven Rain Index (DRI) up to 14.7 m²/s, i.e. approx. 8 l of rain per minute and m² in a 115 km/h hurricane
- Certified hail resistance according to the VKF test regulations – up to the highest resistance class HW 5, depending on the glazing
Safety
- Fall-through protection during installation for certain glazing types, valid for 1 year after manufacture for certain glazing types
- Preventive fire protection: Compliance with DIN 18234 for the prevention of fire spread on rooftops without the requirement for additional measures
- Available as Smoke Lift F100 W which fulfils the requirements of EN 12101-2 for smoke and heat exhaust ventilation units
Comfort
- Quick and easy installation thanks to pre-assembled delivery of the skylight
- Safe and easy installation within a variety of roof types and roof sealing systems
- Optional: Aluminium and steel sheet upstands
- Self-cleaning geometry
Rooflight F100 Circular
Design highlight for the industrial flat roof
Promotion of a healthy indoor climate and pleasant working atmosphere
Achieves thermal insulation values of up to 1.3 W/(m²K)
Electrical ventilation options
Can be combined with lasered fall-through protection grid for greater safety on your roof
Available in 7 sizes and with 3 different opening variants
The benefits at a glance
Energy efficiency
- Compliance with all requirements of the most recent Energy Performance of Buildings Directive (EnEV) and the German Building Energy Act (GEG) 2020
- Fully insulated GRP upstand with a U-value of 0.67 W/m²K
- Design completely free of thermal bridges for optimum U-values and reduced risk of condensation
- Comprehensive Environmental Product Declaration (EPD) according to DIN EN 15804, DIN EN ISO 14040, DIN EN ISO 14044 and EN ISO 14025
Stability
- High resistance to wind load (UL 1500 - 5500) and snow load (DL 2500 - 10000) according to DIN EN 1873
- Certified watertightness under heavy rain in storm conditions (DRI up to 14.7 m²/s, corresponds to approx. 8 l of rain per minute and m² in a 110 km/h hurricane)
- Certified hail resistance in accordance with the VKF test regulations (depending on glazing up to HW 5, corresponds to approx. 5 cm hailstone diameter)
Safety
- Preventive fire protection: Compliance with DIN 18234 - Prevention of fire spread on rooftops without additional measures
Comfort
- Design highlight for the industrial flat roof through round design
- Quick and easy installation for roofers thanks to completely pre-assembled delivery of the skylight
- Self-cleaning geometry
Greater stability and safety under heavy loads,
greater comfort during installation
– our rooflight domes
Trust in 70 years of expertise
For energy-efficient and fire-safe buildings
Energy efficiency

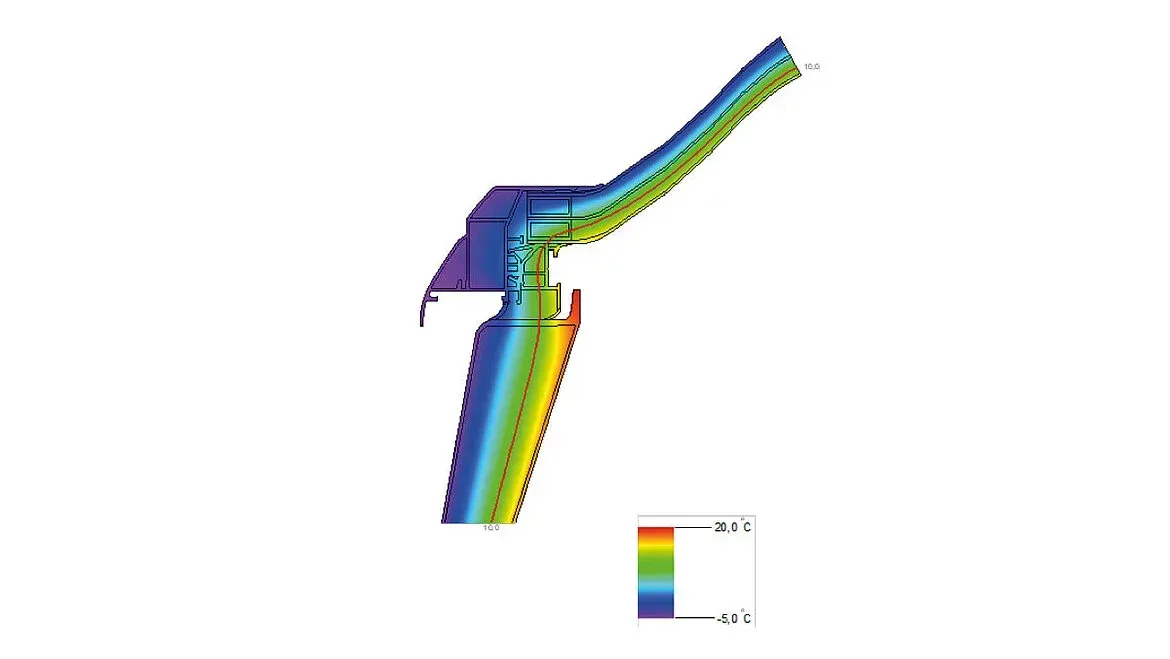

The energetic interaction of the individual system components such as glazing, frame, sealing system and upstand in the entire rooflight construction ensure all-round optimum thermal insulation with minimised risk of condensation. The isothermal curve is a graphical representation for simulating the temperature distribution within a component. Isothermal lines are lines featuring the same temperature and reveal a measurable customer benefit. The 10.0° isothermal line is a measured variable used in building physics. This is marked as a red line in the diagram. If this line wanders outside the confines of a structure, condensate or even frost will form precisely at this point. On the other hand, the optimal, kink-free curve of the 10.0° isotherm in the LAMILUX rooflight dome results in a significant reduction in the risk of condensation on the inside of the overall construction during cooler outside temperatures, thus contributing to the energy management of the building.

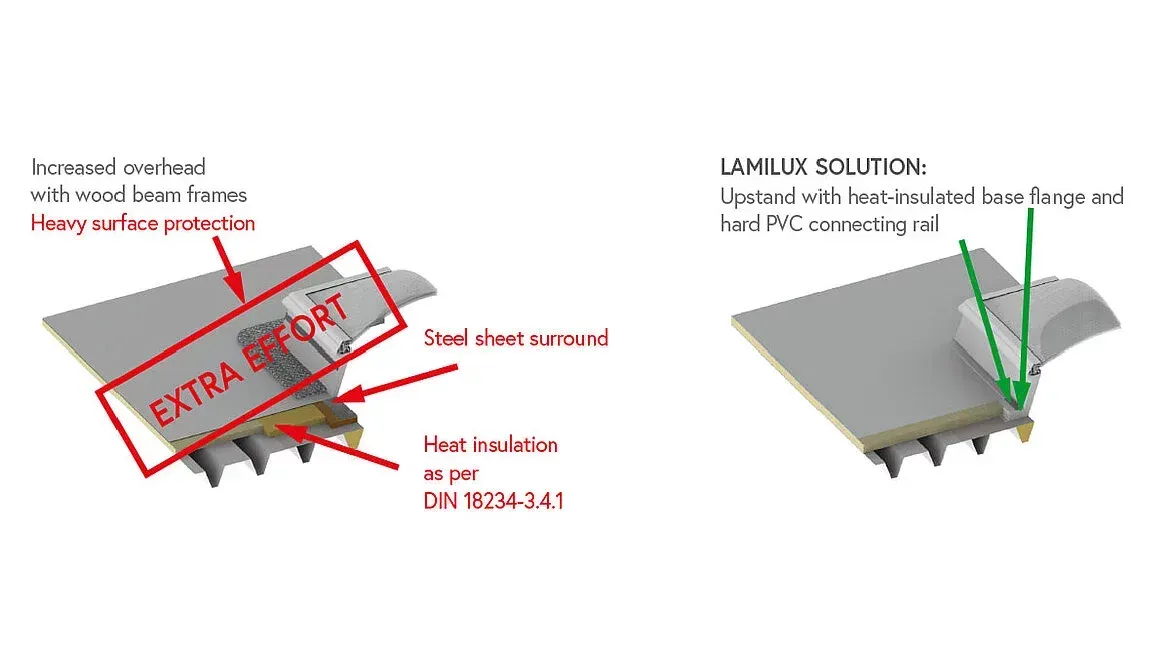

Preventive fire protection
According to DIN 18234, roof penetrations, such as skylights, on large roofs with a roof pitch of up to 20° need to be designed in such a way that fire propagation from the bottom to the top is prevented. Without such measures, there would otherwise be a risk of flame spreading through the roof opening to the roof cladding or into the roof structure in the event of a fire. To prevent this, in most cases, according to the standard, special insulation materials are used around the openings and gravel fill is applied to the roof. LAMILUX, however, offers intelligent solutions which make gravel fill unnecessary. LAMILUX dome rooflights consist of a border frame and a GRP upstand and – in contrast to PVC or aluminium upstands or rooflights without a border frame – meet the safety requirements of DIN 18234 without additional measures. Thus, with our LAMILUX rooflights, we contribute considerably to providing a roof, which will be safe in the event of a fire. Our interactive planning aid provides an overview of the possible combinations of skylights in accordance with DIN 18234.
We are your reliable partner
For every building project and in all weather conditions

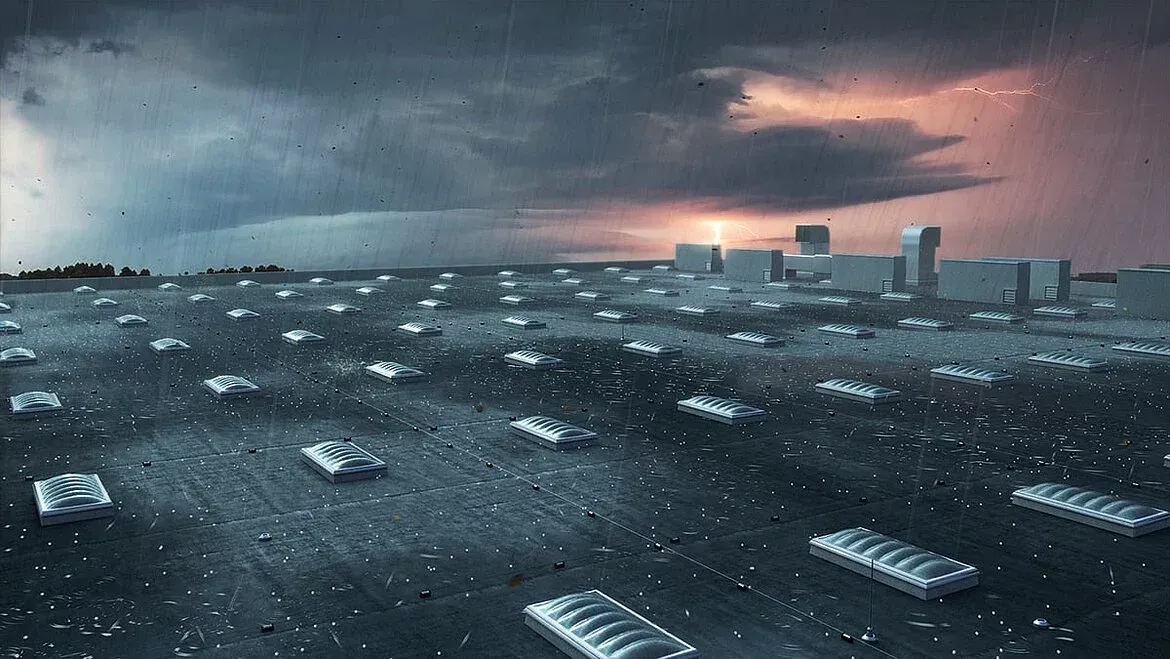

Greater safety during weather extremes
Heavy rain, hail, heavy snow and storms: Extreme weather events have been increasing in frequency for several years. Such events occur only very irregularly, but do so suddenly and unpredictably. This is precisely why it is important to protect roofs and houses from these dangers at an early stage. Above all, skylights are exposed to the influences of nature all year round. As a manufacturer of skylights, we see it as our responsibility to adapt our products to the changing environment. That is why we have further improved the design of our classic rooflight dome. With clever geometry instead of more material, it is equipped for future challenges. The wave shape of the dome shell provides better load transfer and greater stiffness without using more material. As a result, the LAMILUX domed rooflight withstands more wind and snow and remains watertight at higher wind speeds. The LAMILUX Rooflight F100 W is the new standard for industrial flat roofs.

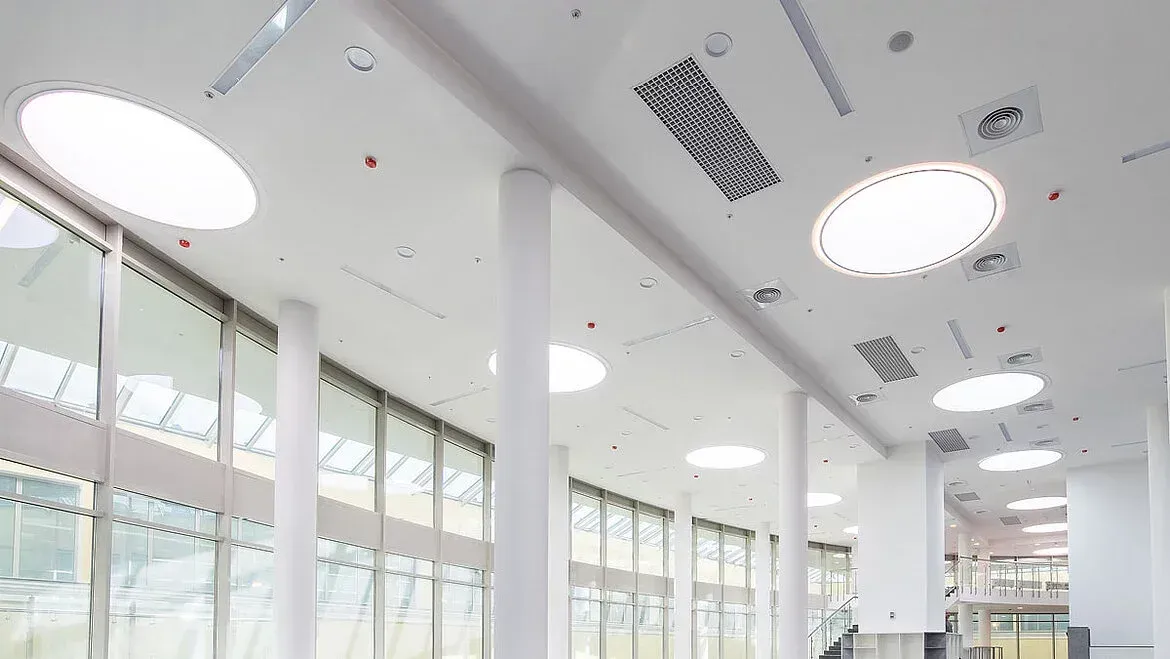

Greater design for industrial roofs
Statutory regulations, health regulations and industrial requirements call for customised and tailor-made solutions, especially on industrial premises. Our LAMILUX Rooflight F100 Circular is a guarantee for pleasant and healthy working conditions and an additional visual highlight. Double or triple layered, it efficiently provides daylight and fresh air. The curved plastic frame offers an optimal indoor climate as well as an equally special design. The round shape gives architects and planners creative freedom. Even in extreme weather events, the Rooflight F100 Circular provides functional protection for the building. Our circular rooflight reveals its advantages wherever buildings not only require optimal daylight illumination and the best possible fresh air supply, but also an appealing design as an eye-catcher.
