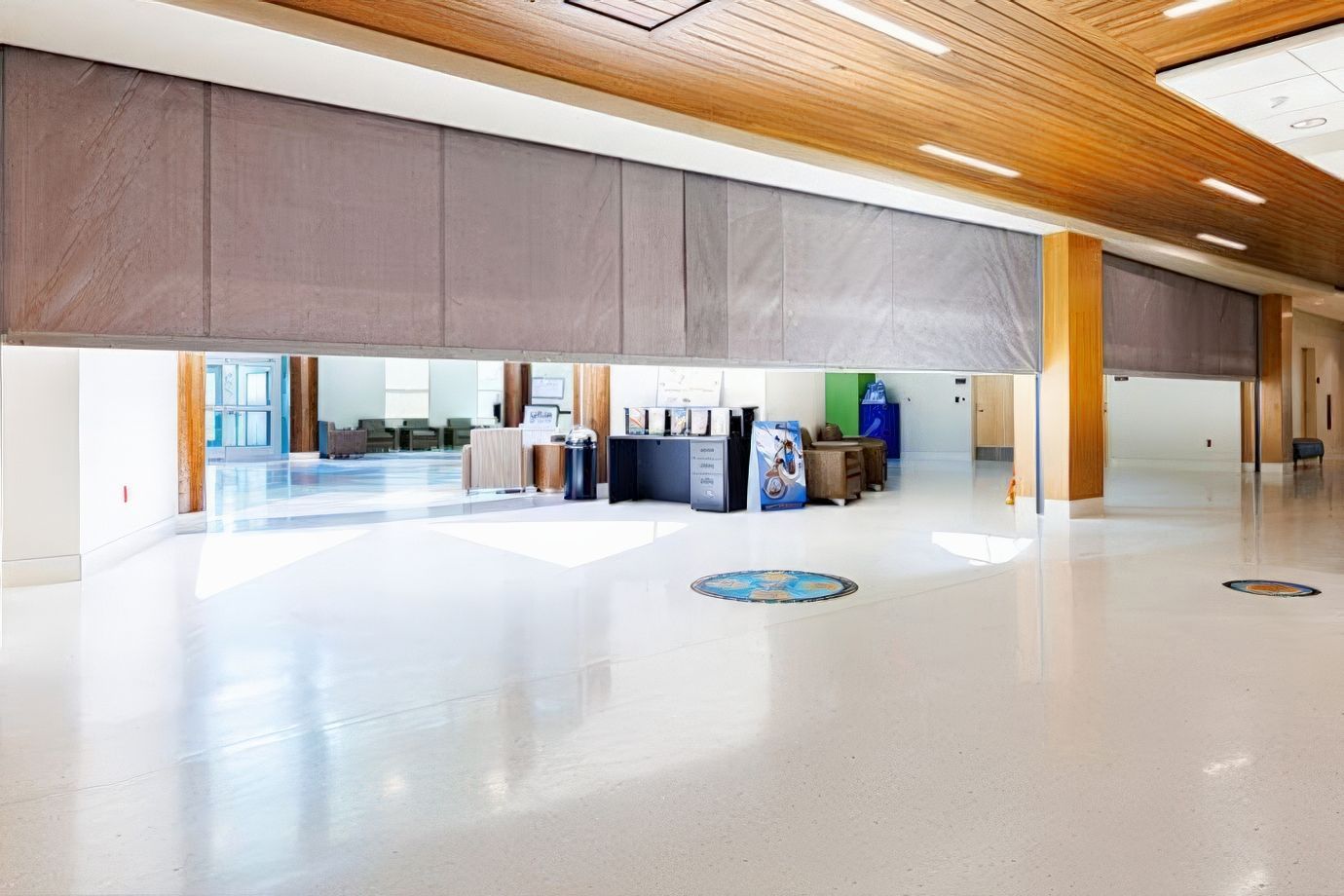

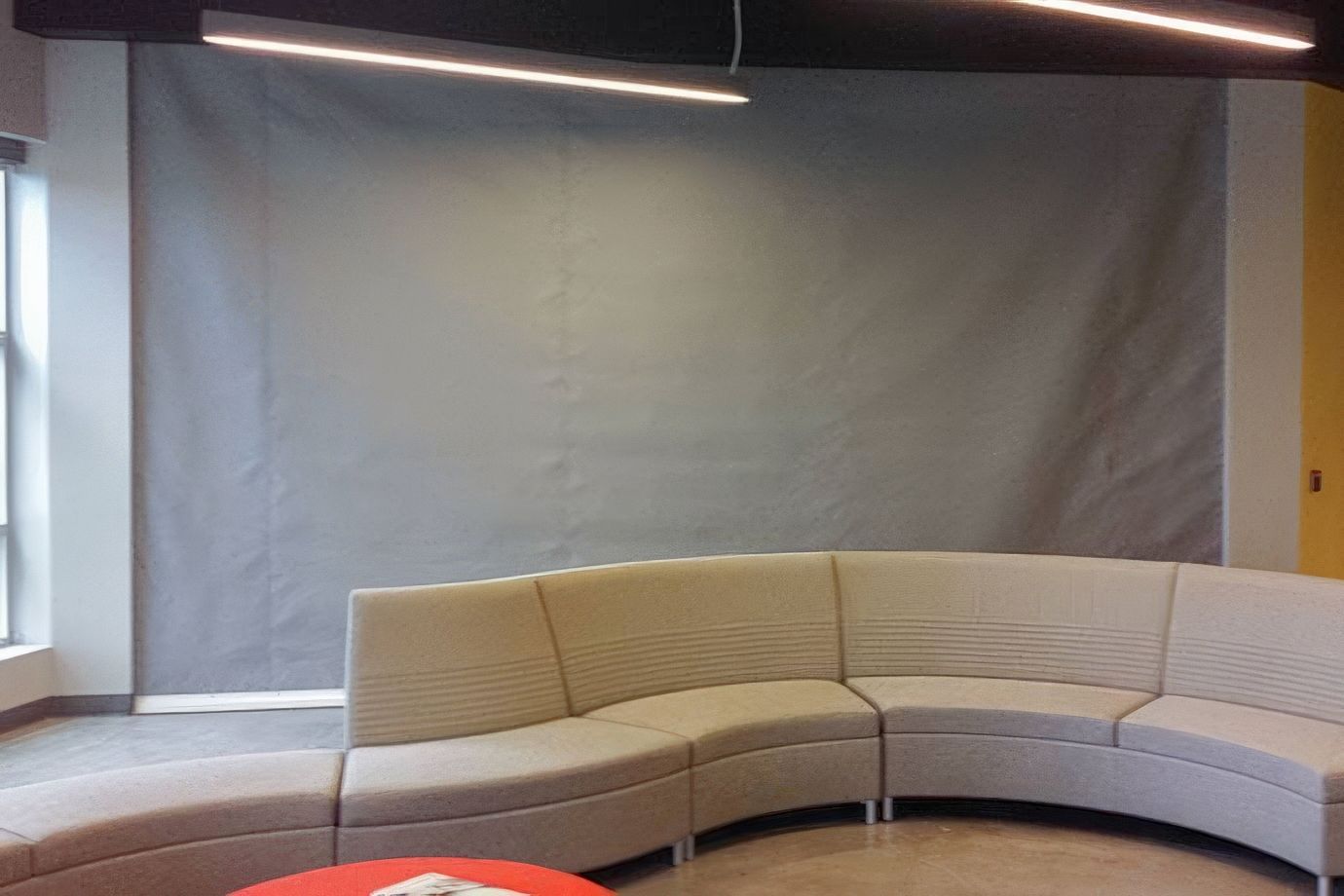

The Smoke curtain is fixed in place with side guides and bottom bars so smoke is handily contained when the building goes into an alarm condition.

The model building codes allow smoke rated (only) enclosures and protectives in specific applications. The SmokeFighter D150 Smoke baffle has been engineered to meet these applications where egress is not required. The assembly is designed to prevent the migration of smoke in hospital corridors, elevator lobbies and provide the separation required to create smoke compartments in suites of sleeping rooms in hospitals.

Ratings

UL 1784 tested & listed without an artificial bottom seal

Code Compliance

Code Compliance Research Report CCRR-0455

ASME A17.1 compliant vision panel when required

Egress

Not available

Operation

Auto-Set® automatic resetting

Fail-Safe Design – automatic self-closing mechanism does not require power to self-close

Size

Unlimited widths and heights

Finishes (metal components only)

McKEON Sterling Gray

Powder coat of any color as selected



Stainless Steel — No. 4 Polish or No. 8 Mirror

Product Specifications
