Auto-Set® H200 Series
The automatic closing H200 Series horizontal shutters prevent the migration of heat, smoke or hot/toxic gases by creating vertical compartments thereby separating the vertical spaces from one another.
TECHNICAL INFORMATION
downloads and details
Horizontal fire shutters reduce construction costs. Smoke evacuation systems can become unnecessary and one horizontal fire shutter can be used in lieu of numerous conventional fire barriers on multiple floors.
The H200 is ideal for closing off penetrations in ceilings for atrium conditions as well as convenience stairways, escalator enclosures and skylights.
For detailed code analysis consult “Fire Door Systems, A Guide to Code Compliance.”
Ratings
2-hour rated UL 10B*
Smoke & Draft labeled UL 1784
Code Compliance
CCRR-1086
Operation
Auto-Set® automatic resetting
Fail-Safe Design – automatic self-closing mechanism does not require power operation
Function
Interior and exterior applications
Coiling on the horizontal plane
Size
Widths to 30′, lengths to 90′ (180′ bi-parting); for larger sizes and custom configurations consult factory
Finishes
McKEON Sterling Gray
Powder coat of any color as selected
Stainless Steel — No. 4 Polish or No. 8 Mirror
Product Specifications
Specifications & Tech Data
This product is not available in Quebec. Therefore some of the following downloads may not be available in French.

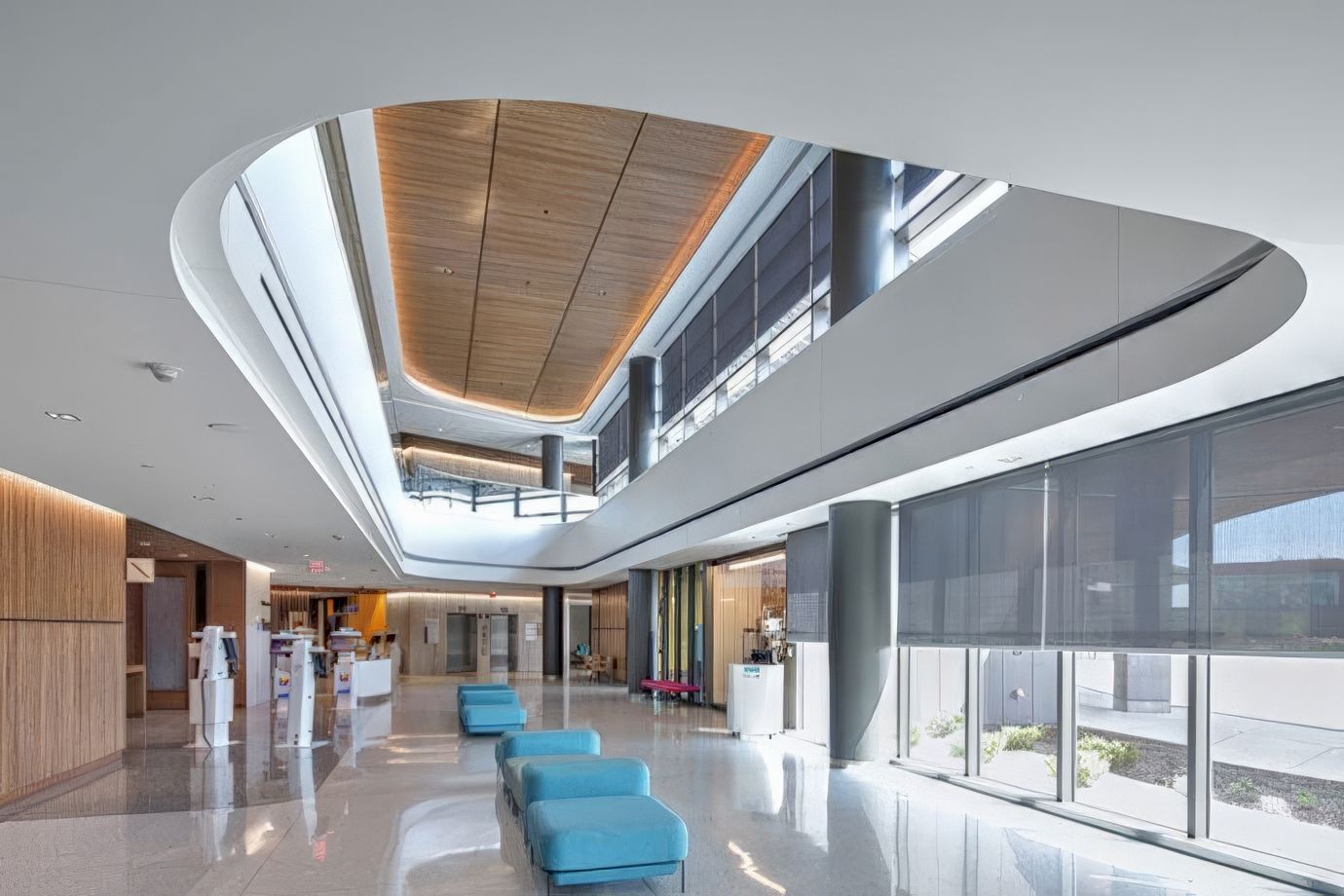

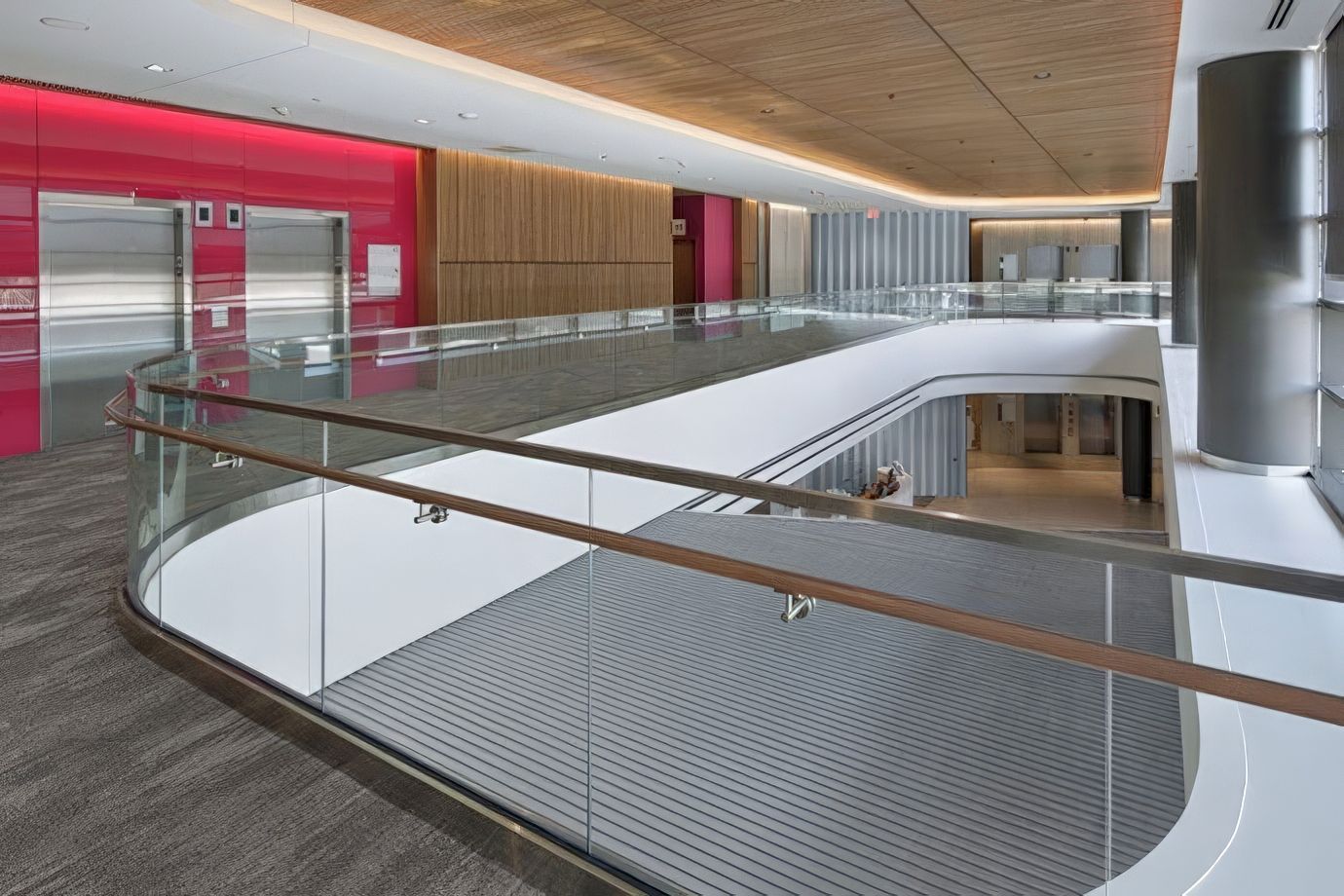

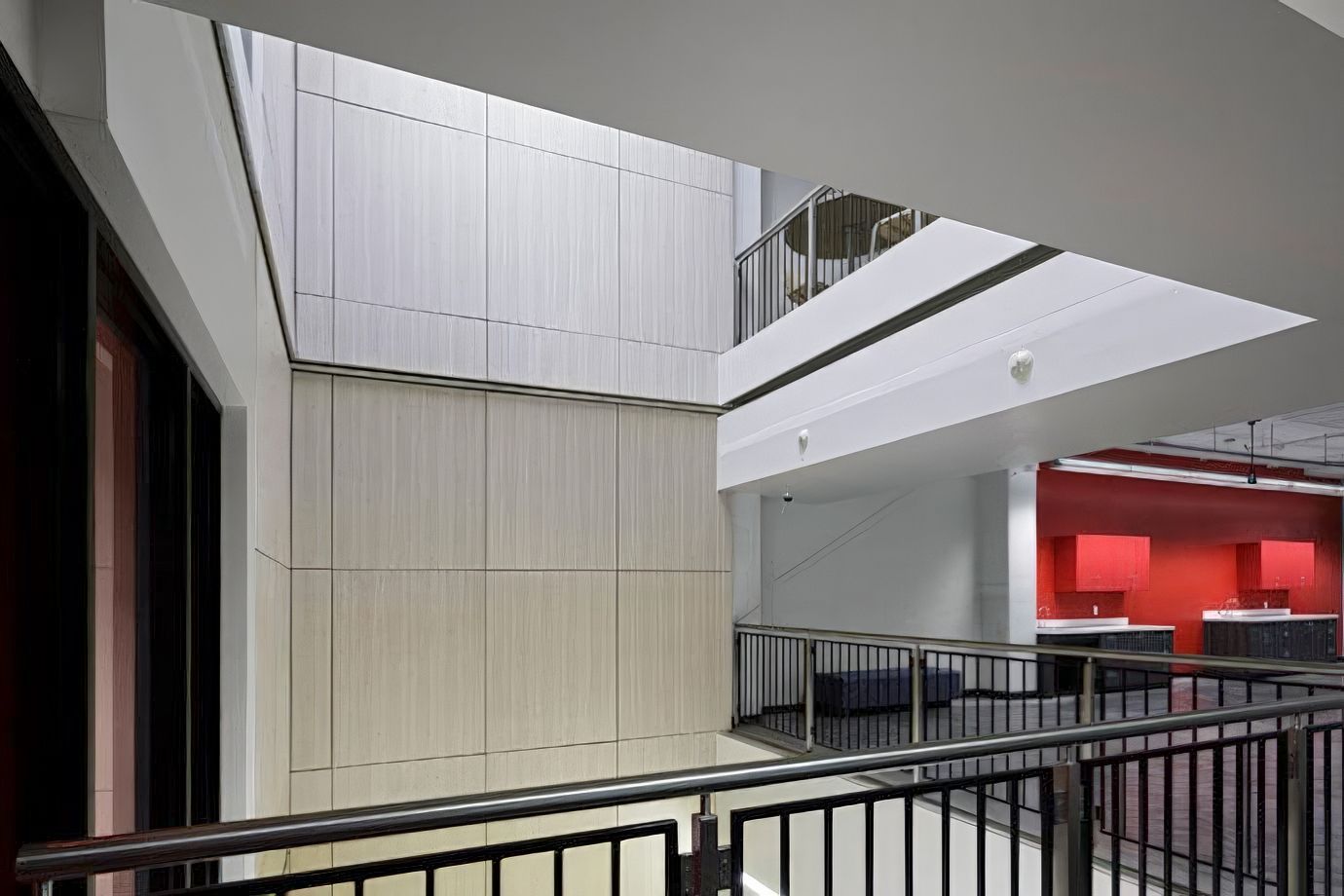

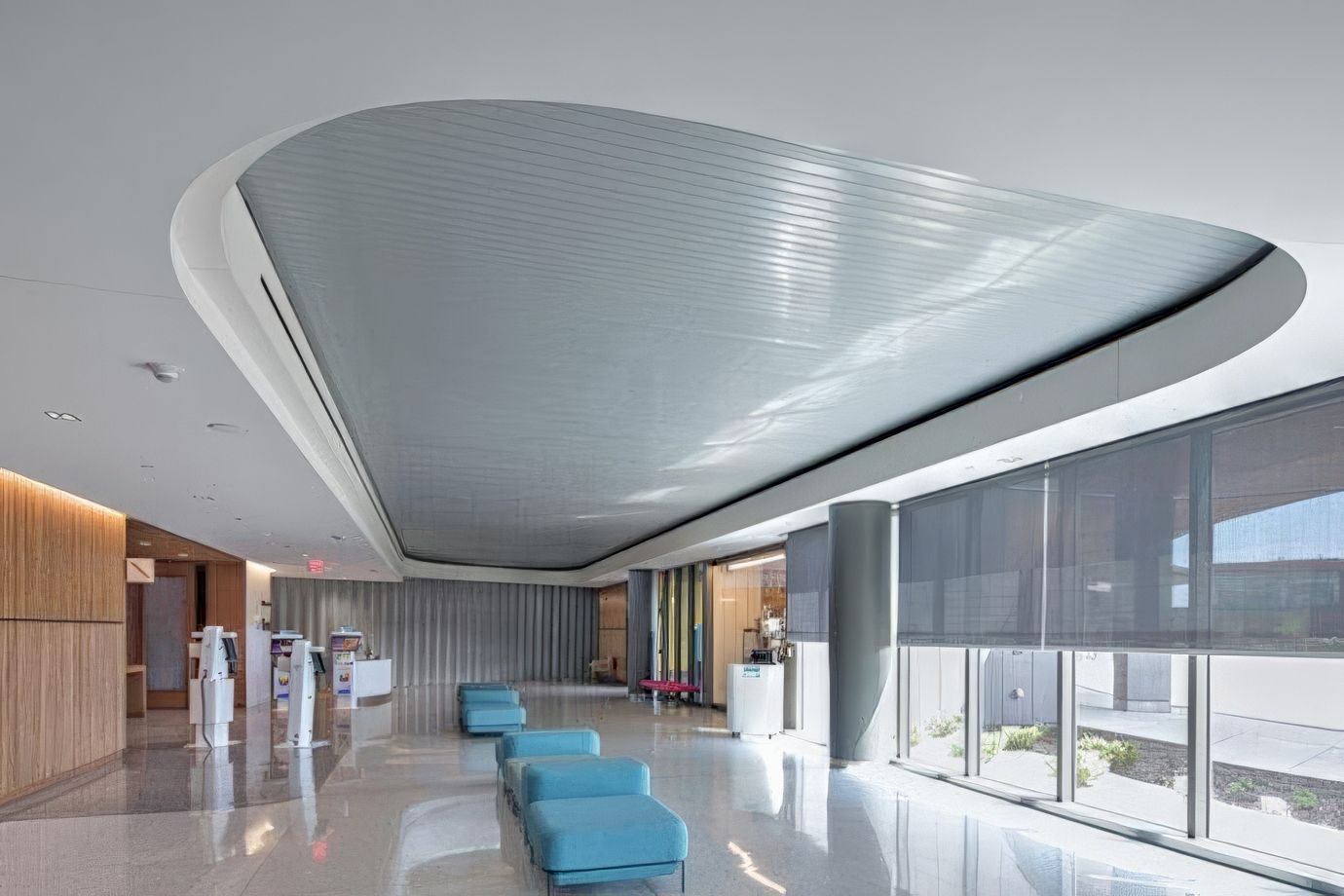

This Product in action
