The units are made up of either 7-inch or 14-inch panels requiring a 9-inch or a 15 1/2-inch pocket profile, respectively.

The Safescape® AC8400, AC8500, AC8700, AC8800 and AC8900 fire door systems are ideal for any application where fire protection and emergency egress is needed and conventional swinging doors would not provide an adequate and desirable solution. The AC8200 and AC8600 can be used for any application where only fire protection is required and egress is not an issue.

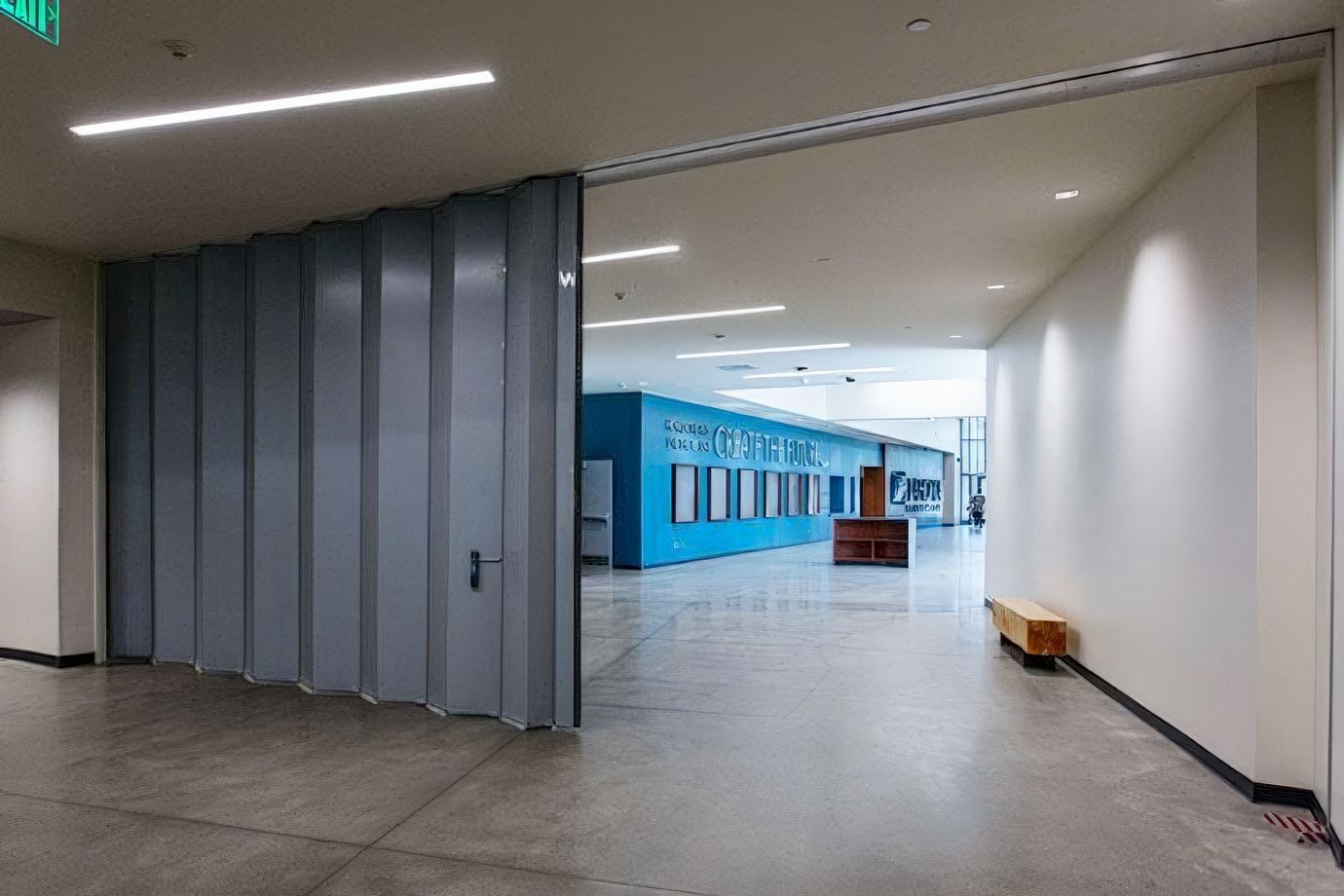

Typical applications are: cross-corridor situations in schools and hospitals as well as area separations. They are ideal solutions for fire protection in area separation walls, occupancy separations, elevator lobby and corridor separations. The AC8000 Series fire door systems have become increasingly designed into casinos, museums and retail areas.

Ratings

3-hour rated UL 10B*

Smoke & Draft labeled UL 1784

*Listed under the Canadian equivalent CAN/ULC S104

Code Compliance

CCRR-1086 – ADA compliant

Egress

Available with fixed complying swing egress doors

Push paddle exit device (AC8800 only)

Operation

Auto-Set® automatic resetting

Fail-Safe Design – automatic self-closing mechanism does not require power operation

AC8800 is D/C power operated with integrated backup system

Manual operation for assemblies up to 10′ x 10′

Size

Widths to 80′ (160′ bi-parting), heights to 24′; for larger sizes and custom configurations consult the factory

Negotiate radius curves: 2′-0″ without egress door; 3′-0″ with egress door

Finishes

McKEON Sterling Gray

Powder coat of any color as selected

Stainless Steel — No. 4 Polish or No. 8 Mirror

Product Specifications
