D500S Series
The automatic closing H200 Series horizontal shutters prevent the migration of heat, smoke or hot/toxic gases by creating vertical compartments thereby separating the vertical spaces from one another.
TECHNICAL INFORMATION
downloads and details
Unique configurations are no challenge. This UL1784 labeled smoke curtain technology creates its own corners and jambs, vertically acting without any cumbersome features. Its corner profile is unmatched in the industry! The system installs with ease, operates smoothly and simply, and conceals beautifully in the finished ceiling.
The D500S can reduce the volume of smoke in an atrium, protect a corridor, or mitigate smoke migration. Best of all, the technology provides required smoke separation without impact to the desired spacious appearance in any design.
Ratings
Smoke and Draft labeled UL 1784
Code Compliance
Code Compliance Research Report CCRR-0455
Egress
Not available
Operation
Auto-Set® automatic resetting
Fail-Safe Design – automatic self-closing mechanism does not require power or battery back-up to self-close
Size
Widths to 500′-0″ (15240cm) and heights to 48′-0″ (1463cm)
Finishes (metal components only)
McKEON Sterling Gray
Powder coat of any color as selected
Stainless Steel — No. 4 Polish or No. 8 Mirror
Product Specifications
Specifications & Tech Data
This product is not available in Quebec. Therefore some of the following downloads may not be available in French.

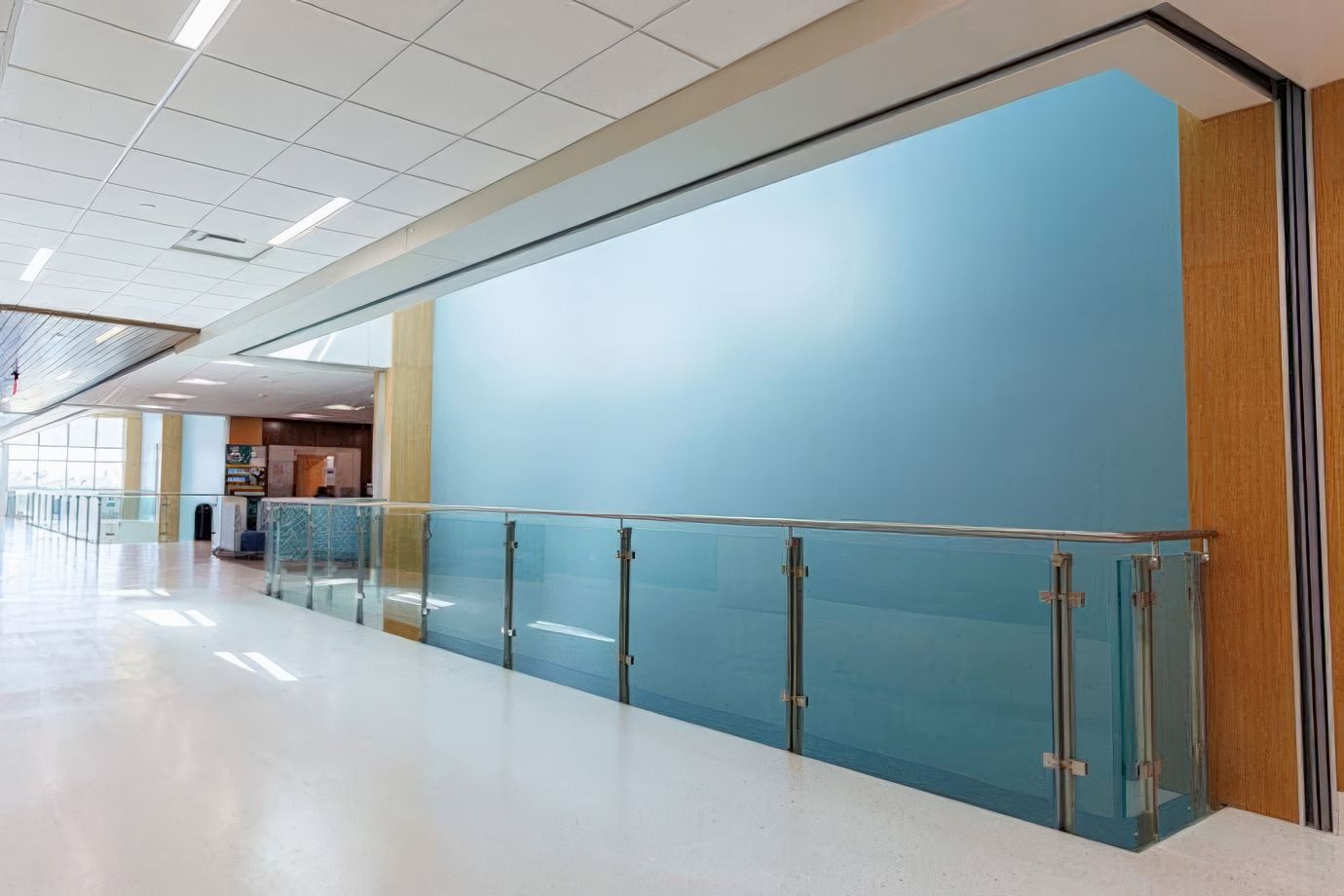

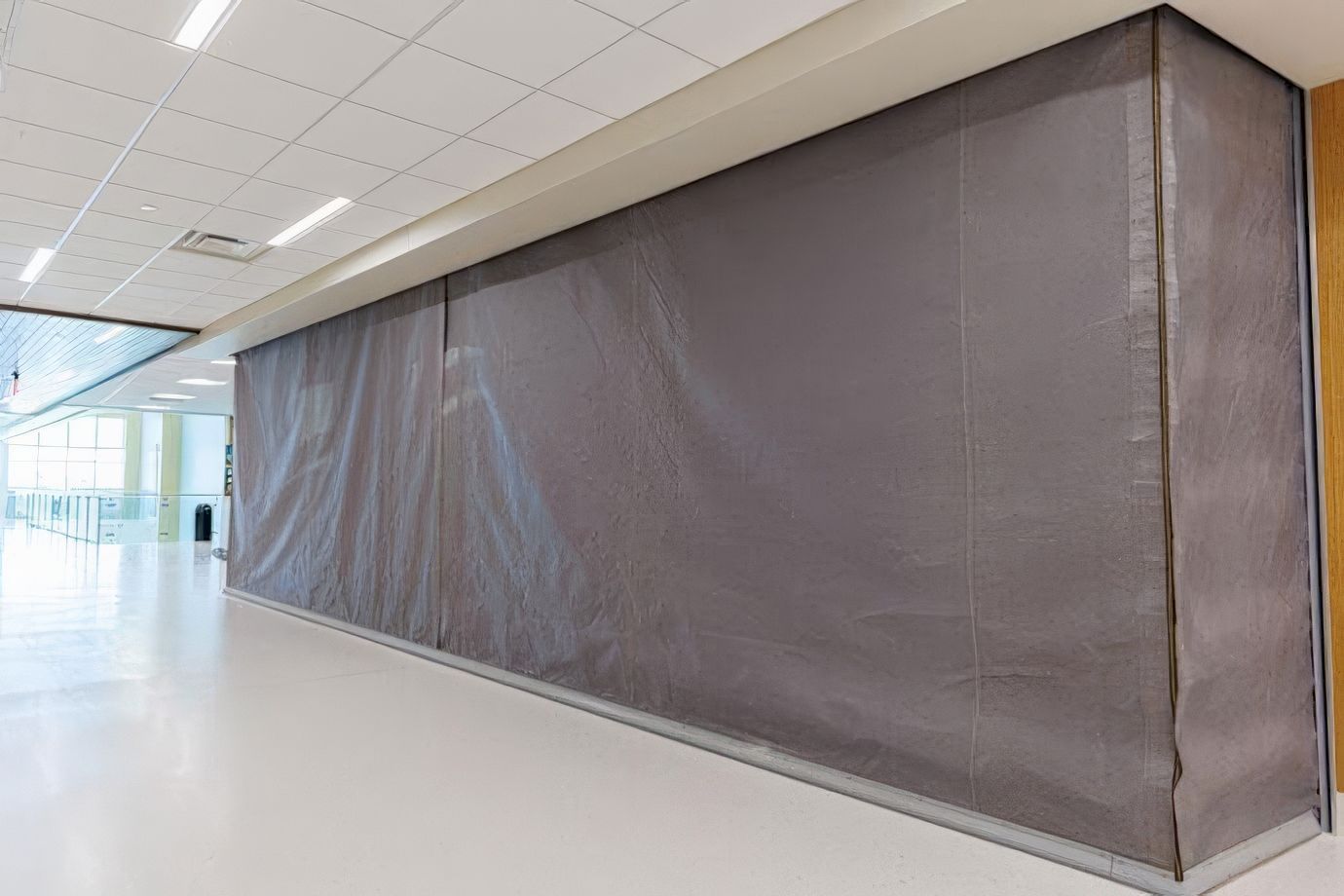

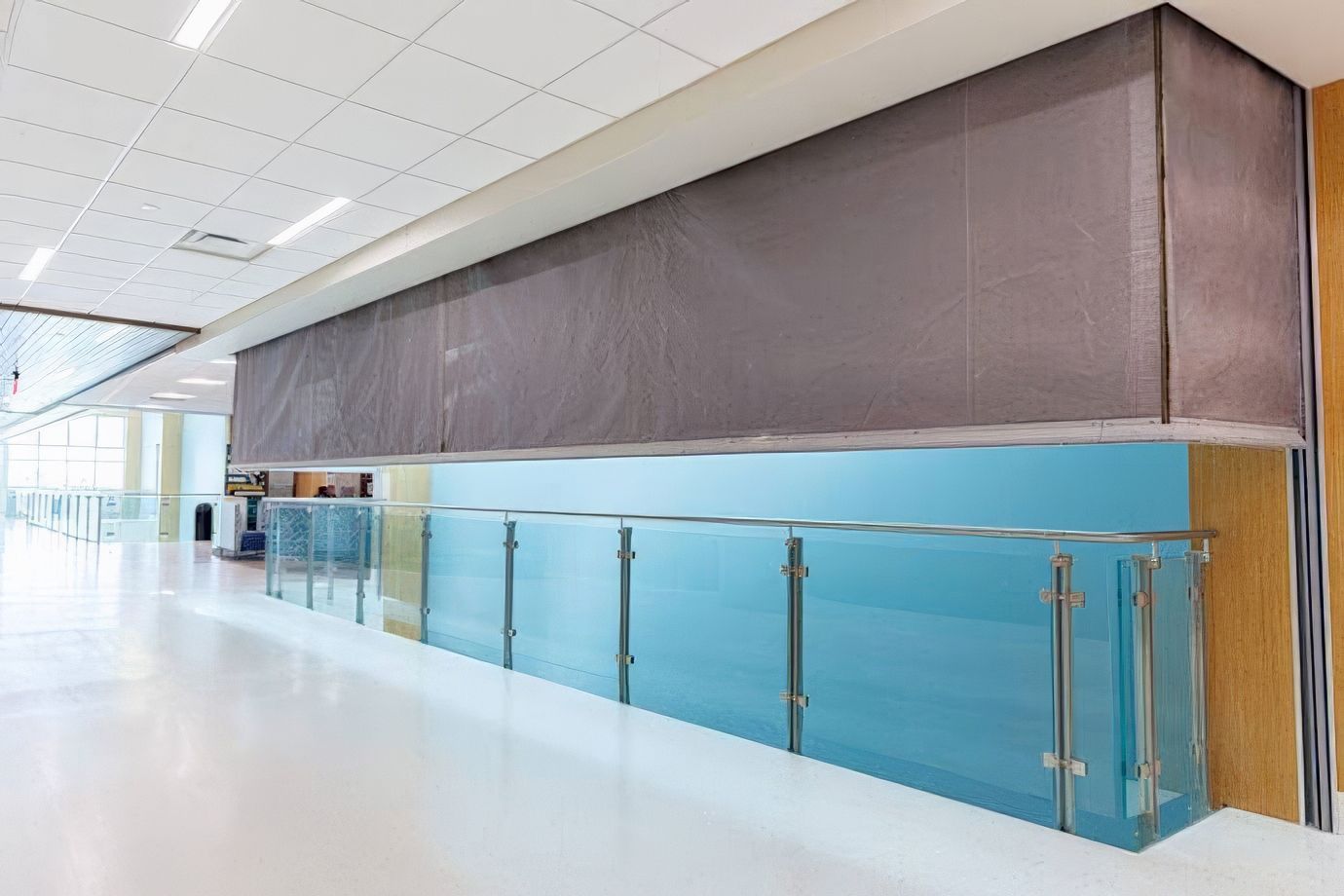

This Product in action
